Hurricane SA Centrifugal Pump Twin Impeller 380V 1.5KW (2HC25-160B)

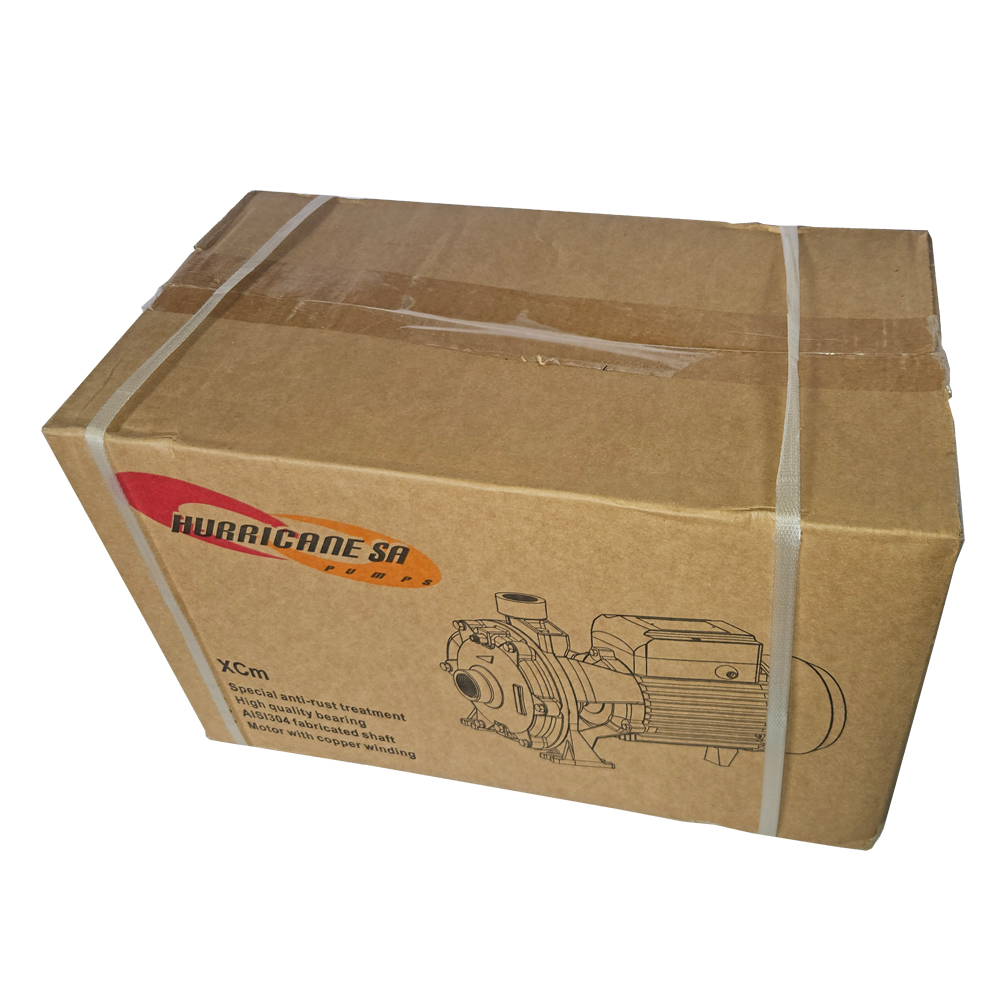

Centrifugal 2HC25 Serries Pump Box
2HC Series Pump Curve

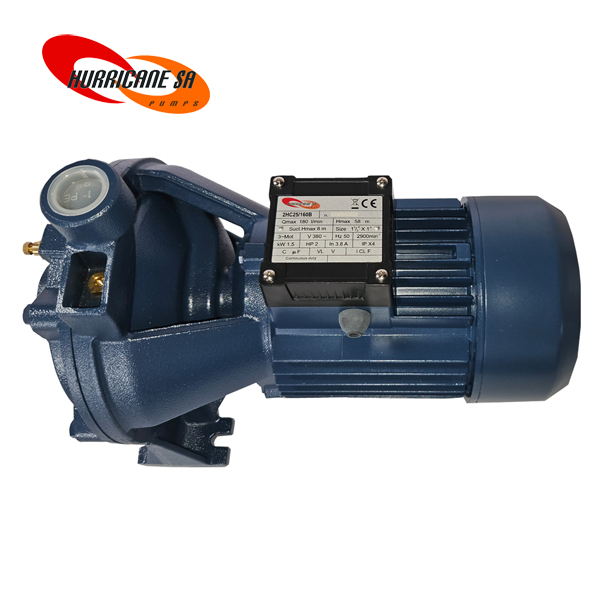

Centrifugal Pump Twin Impeller 380V 1.5KW (2HC25-160B)

R3940,00 Excl. V.A.T.

The Hurricane SA Centrifugal Pump Twin Impeller 380V 1.5KW 2HC25-160B. The Twin Impeller Centrifugal Pump is a 220V 1.5KW pump used to boost pressure in the waterline. It has an inlet size of 1&1/2" and an outlet size of 1".

Description

The Hurricane SA Centrifugal Pump Twin Impeller 380V 1.5KW 2HC25-160B. The Twin Impeller Centrifugal Pump is a 220V 1.5KW pump used to boost pressure in the waterline.

It has an inlet size of 1&1/2″ and an outlet size of 1″.

Operating Conditions

Centrifugal Pump is a 380V 1.5KW

  • Maximum fluid temperature : 40°C
  • Maximum flow 180L/min
  • Max head height : 58m

Warranty : 12 Month

According to our general sales conditions

Specifications

Centrifugal Pump is a 380V 1.5KW

  • Voltage : 380V – 400V 50Hz
  • Power : 1.5KW
  • Power : 2HP

Pump

  • Head up to 58m
  • Max flow : 180l/min
  • Max suction: 8m

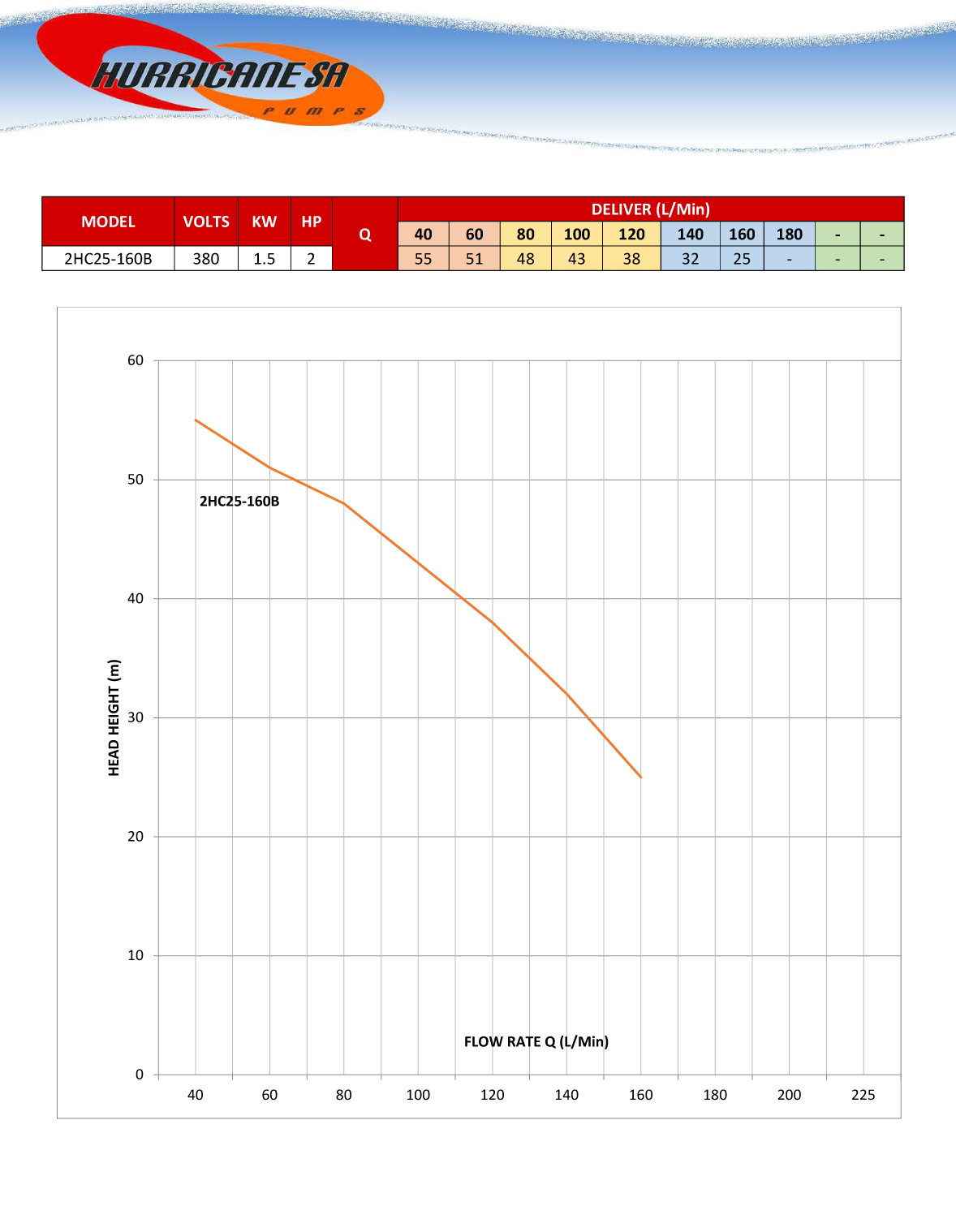

Water Delivery Pump Curve

Visit us on Facebook



Additional information

Weight 26 kg
Dimensions 43 × 24 × 28 cm
