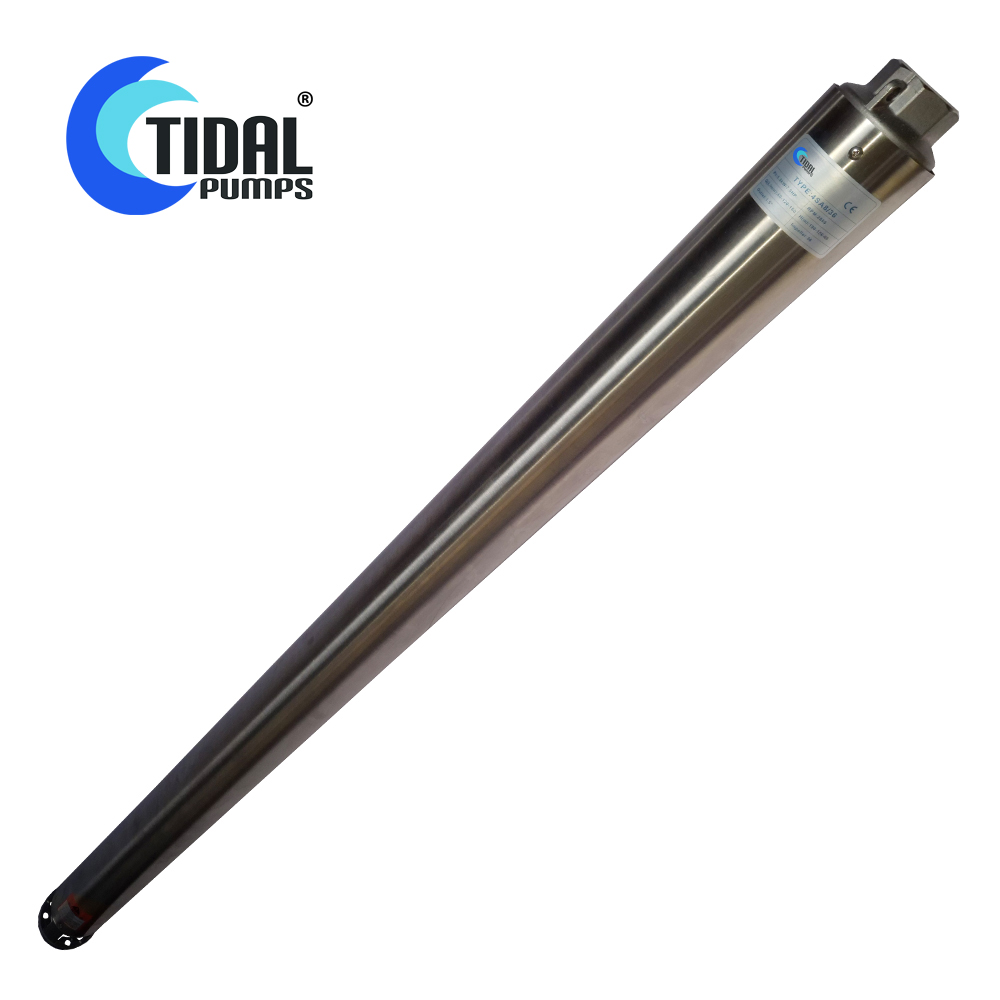

Tidal Pumps 4" Borehole Pump End 5.5KW (4SA8/37)

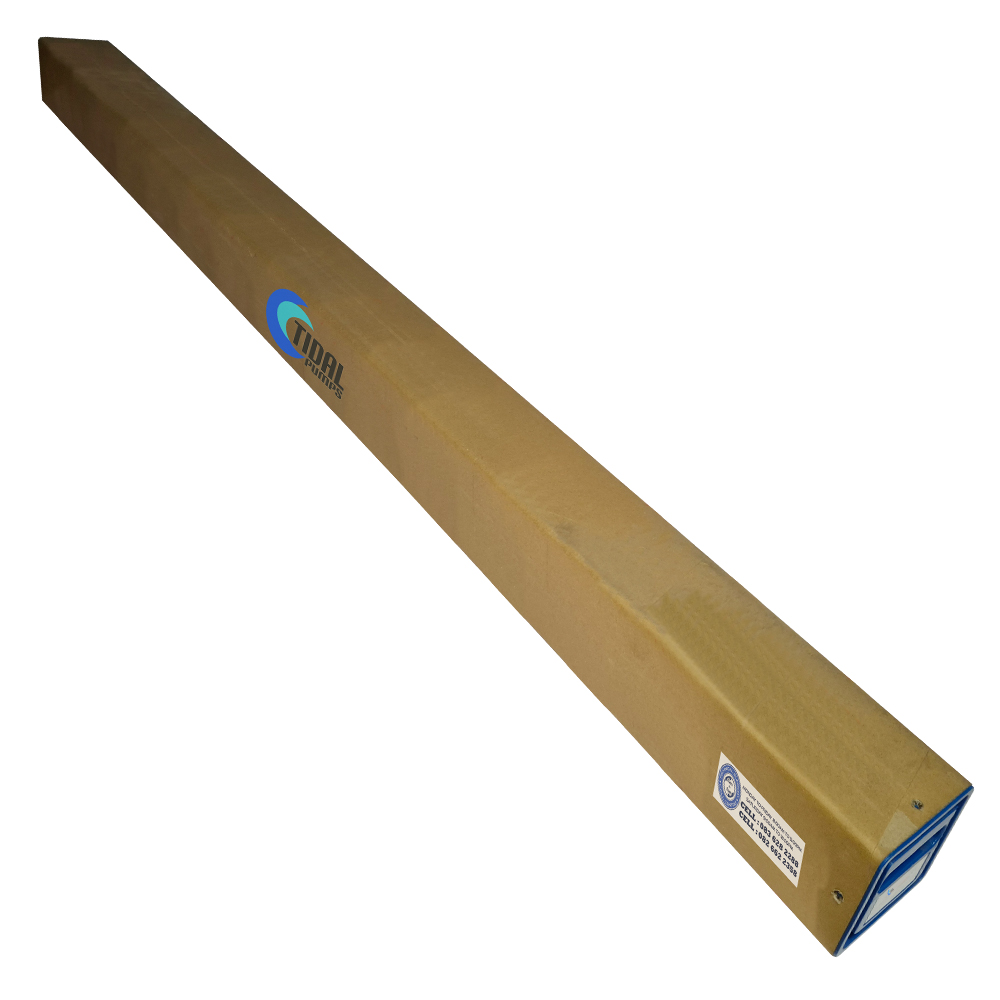

Tidal Pumps 4" Borehole Pump End 5.5KW Box (4SA8/37)
Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves

Borehole Pump End Only 5.5KW (TIDAL-4SA8/37)

R2725,00 Excl. V.A.T.

The Tidal Pumps 4SA8/37 borehole submersible pump end requires a 5.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 195m. It can be connected to a 380V three phase 5.5KW borehole submersible motor.

Description

The Tidal Pumps 4SA8/37 borehole submersible pump end requires a 5.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 195m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 5.5KW 7.5HP / 50Hz
Equip with a three phase 380V automatic control box 5.5KW 7.5HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 5.5KW
  • Power : 7.5HP
  • Outlet : 40mm
  • Pump Diameter : 100mm
  • Pump Length : 1698mm
  • Pump Wieght : 14.6KG
Output 60L/min 120L/min 180L/min
Depth 195m 160m 68m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves

Additional information

Weight 14,2 kg
Dimensions 168 × 11 × 11 cm
