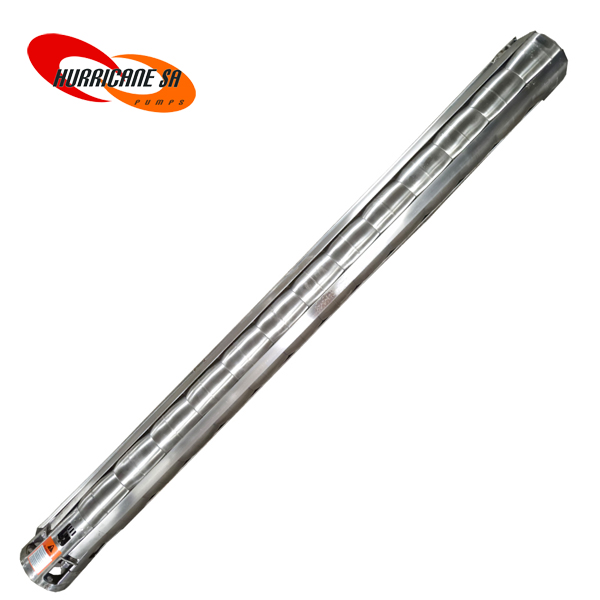

Hurricane SA 6" Borehole Pump End 18.5KW (6SP46-12)
6" Borehole Pump End 18.5KW Box (6SP46-12)
6SP46 Series Borehole Pump Curve

6″ Borehole Pump End 18.5KW (6SP46-12)

R7450,00 Excl. V.A.T.

The Hurricane SA 6SP46-12 borehole 6" submersible pump end requires a 18.5 KW motor to drive it and is capable of delivering up to 100L/min at a depth of 157 metres.

Description

The Hurricane SA 6SP46-12 borehole 6″ submersible pump end requires a 18.5 KW motor to drive it and is capable of delivering up to 100L/min at a depth of 157 metres.

Operating Conditions

  • Maximum fluid temperature : up to +50°C
  • Maximum sand content : 0.25%
  • Maximum Immersion : 100m
  • Minimum borehole diameter : 6″ (15.24cm)

Motor & Pump

Three Phase : 380V – 415V 18.5KW 25HP / 50Hz

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 18.5KW
  • Power : 25HP
  • Pump Diameter : 150mm
  • Pump Length : 1720mm
  • Pump Weight : 30KG

Water Delivery Pump Curve

6SP46 Series Borehole Pump Curve

Additional information

Weight 30 kg
Dimensions 172 × 15 × 15 cm
