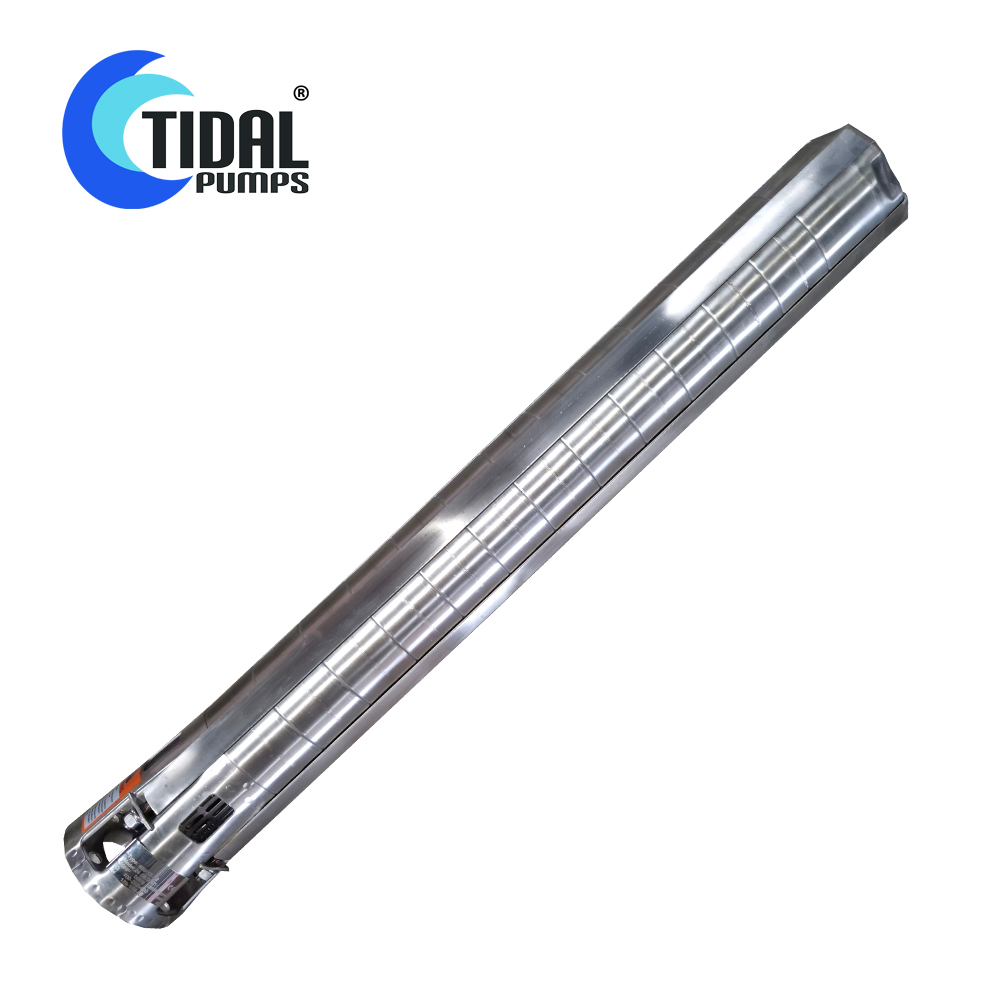

Tidal Pumps 6" Borehole Pump End 7.5KW (TIDAL-6SP17-12)

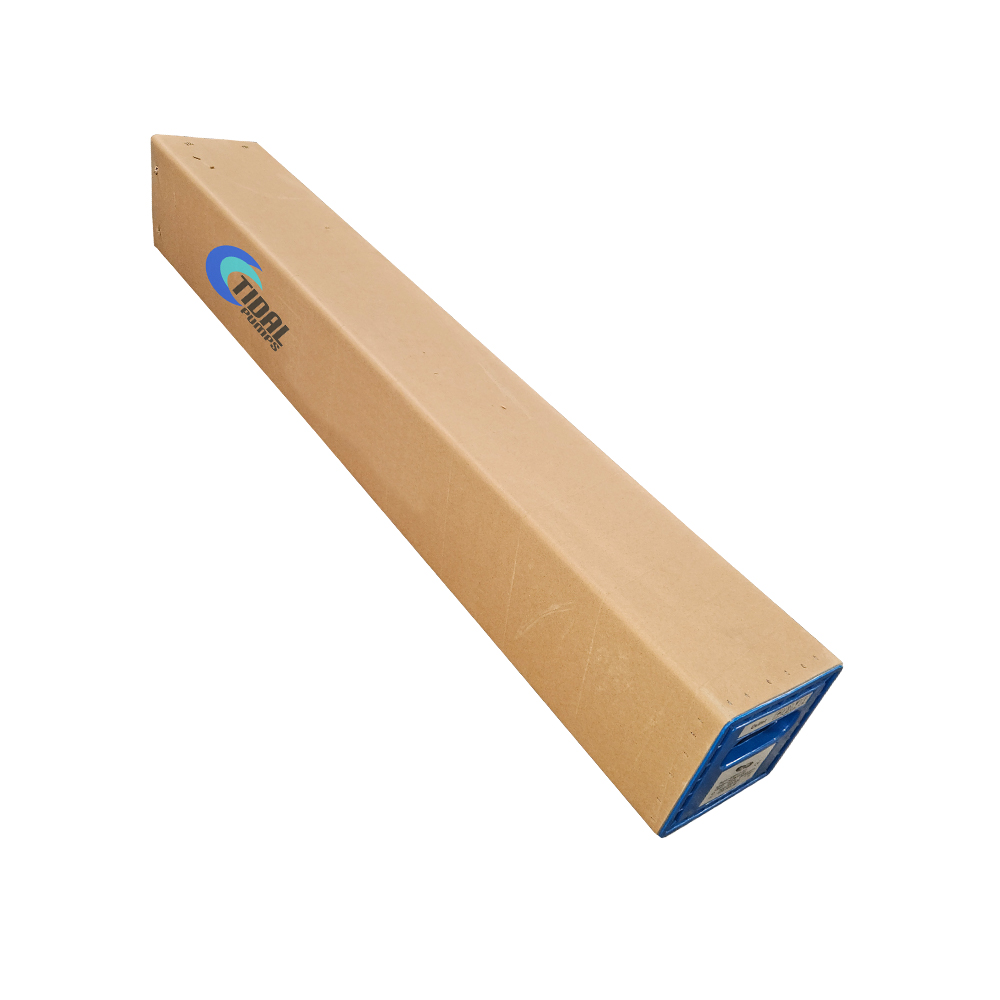

Tidal Pumps 6" Borehole Pump End 7.5KW Box (TIDAL-6SP17-12)
Tidal Pumps 6Inch 6SP17-12 Borehole Pump Curves

6″ Borehole Pump End 7.5KW (TIDAL-6SP17-12)

R4950,00 Excl. V.A.T.

The Tidal Pumps 6SP17-12 borehole 6" submersible pump end requires a 7.5KW motor to drive it and is capable of delivering up to 250L/min at a depth of 105 metres.

Description

The Tidal Pumps 6SP17-12 borehole 6″ submersible pump end requires a 7.5KW motor to drive it and is capable of delivering up to 250L/min at a depth of 105 metres.

Operating Conditions

  • Maximum fluid temperature : up to +50°C
  • Maximum sand content : 0.25%
  • Maximum Immersion : 100m
  • Minimum borehole diameter : 6″ (15.24cm)

Motor & Pump

Three Phase : 380V – 415V 7.5KW 10HP / 50Hz

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 7.5KW
  • Power : 10HP
  • Pump Diameter : 150mm
  • Pump Length : 1080mm
  • Pump Weight : 20KG

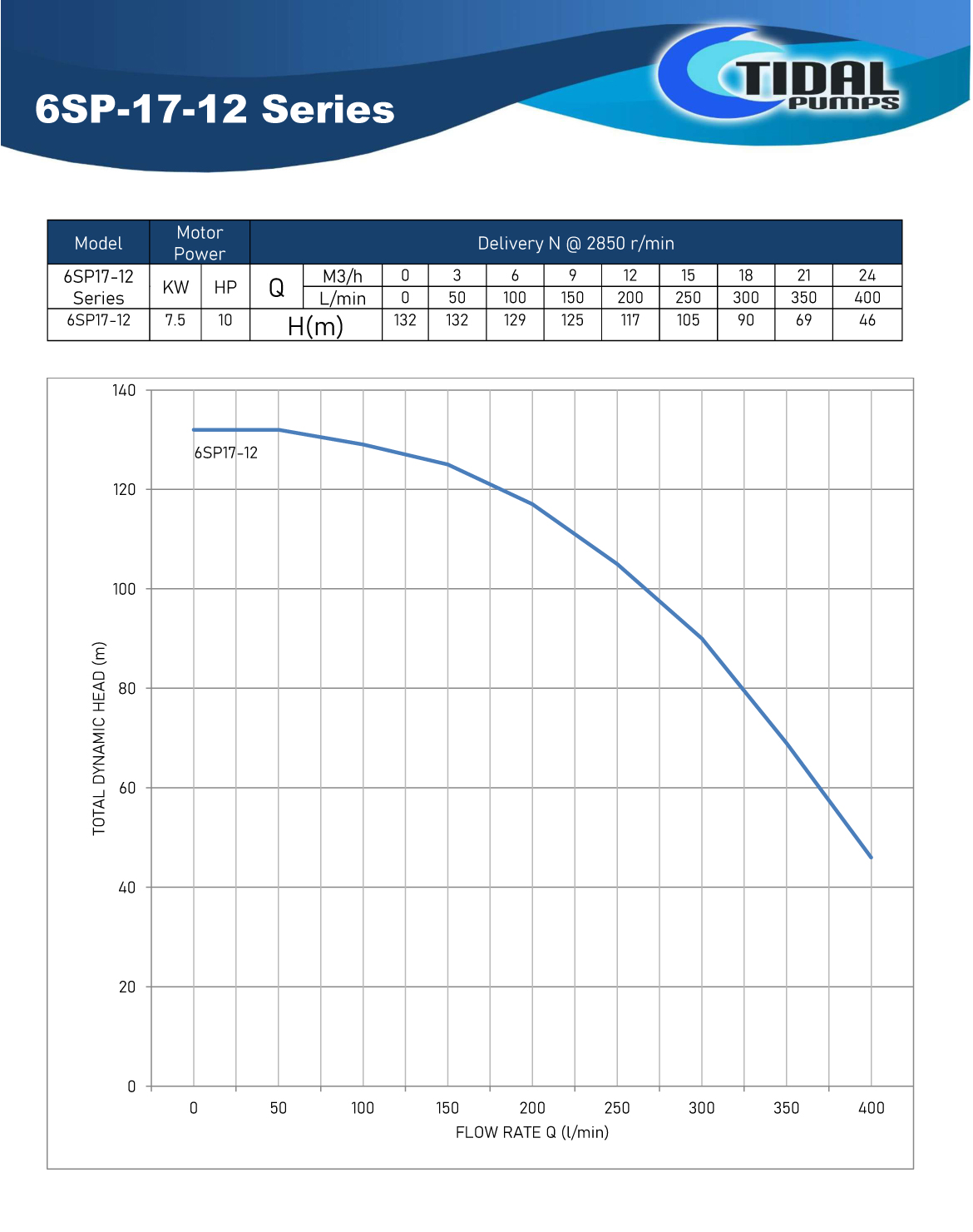

 Water Delivery Pump Curve

Tidal Pumps 6Inch 6SP17-12 Borehole Pump Curves
Tidal Pumps 6Inch 6SP17-12 Borehole Pump Curves

Additional information

Weight 20 kg
Dimensions 108 × 15 × 15 cm
