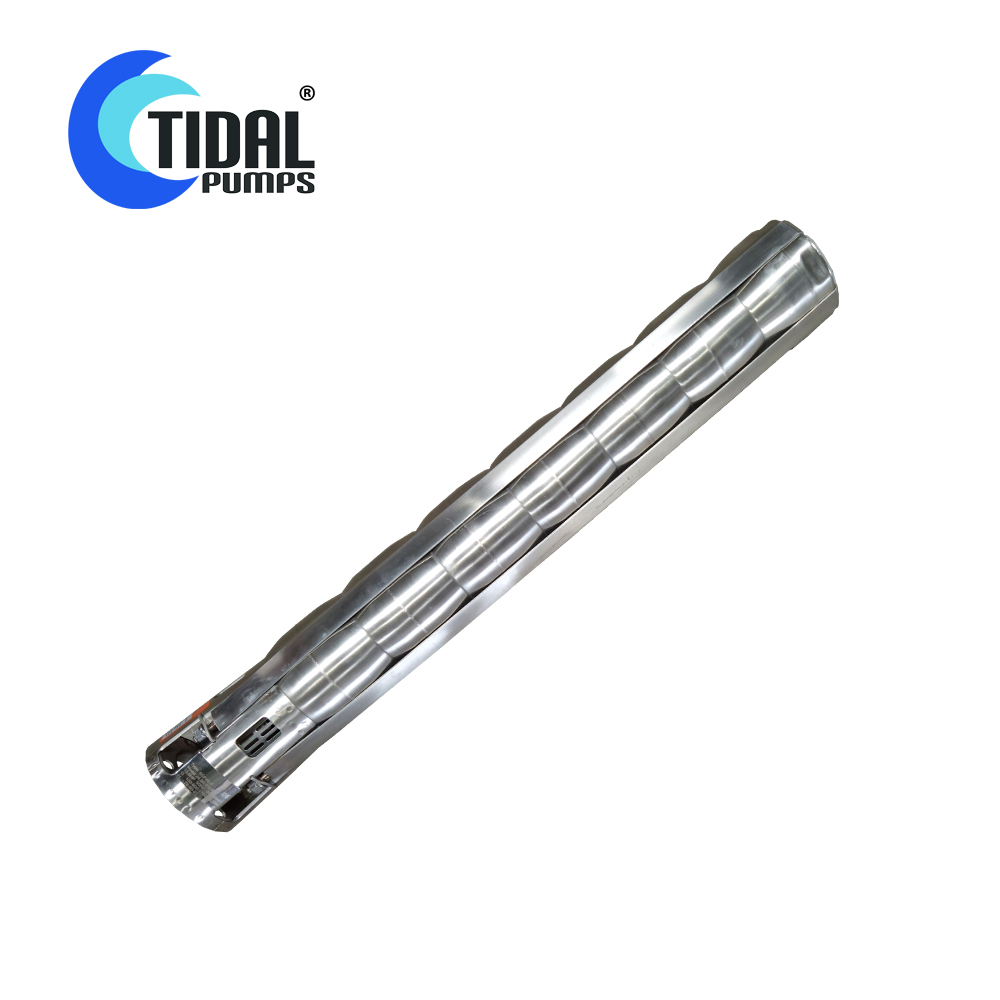

6″ Borehole Pump End 11KW (TIDAL-6SP46-6)

Description

The Tidal Pumps 6SP46-6 borehole 6″ submersible pump end requires a 9.2 KW motor to drive it and is capable of delivering up to 400L/min at a depth of 81 metres.

Operating Conditions

• Maximum fluid temperature : up to +50°C
• Maximum sand content : 0.25%
• Maximum Immersion : 100m
• Minimum borehole diameter : 6″ (15.24cm)

Motor & Pump

Three Phase : 380V – 415V 9.2KW 12.5HP / 50Hz

Warranty : 12 Month

According to our general sales conditions

Specifications

• Speed : 2850RPM
• Power : 9.2KW
• Power : 12.5HP
• Pump Diameter : 150mm
• Pump Length : 1150mm
• Pump Weight :19KG

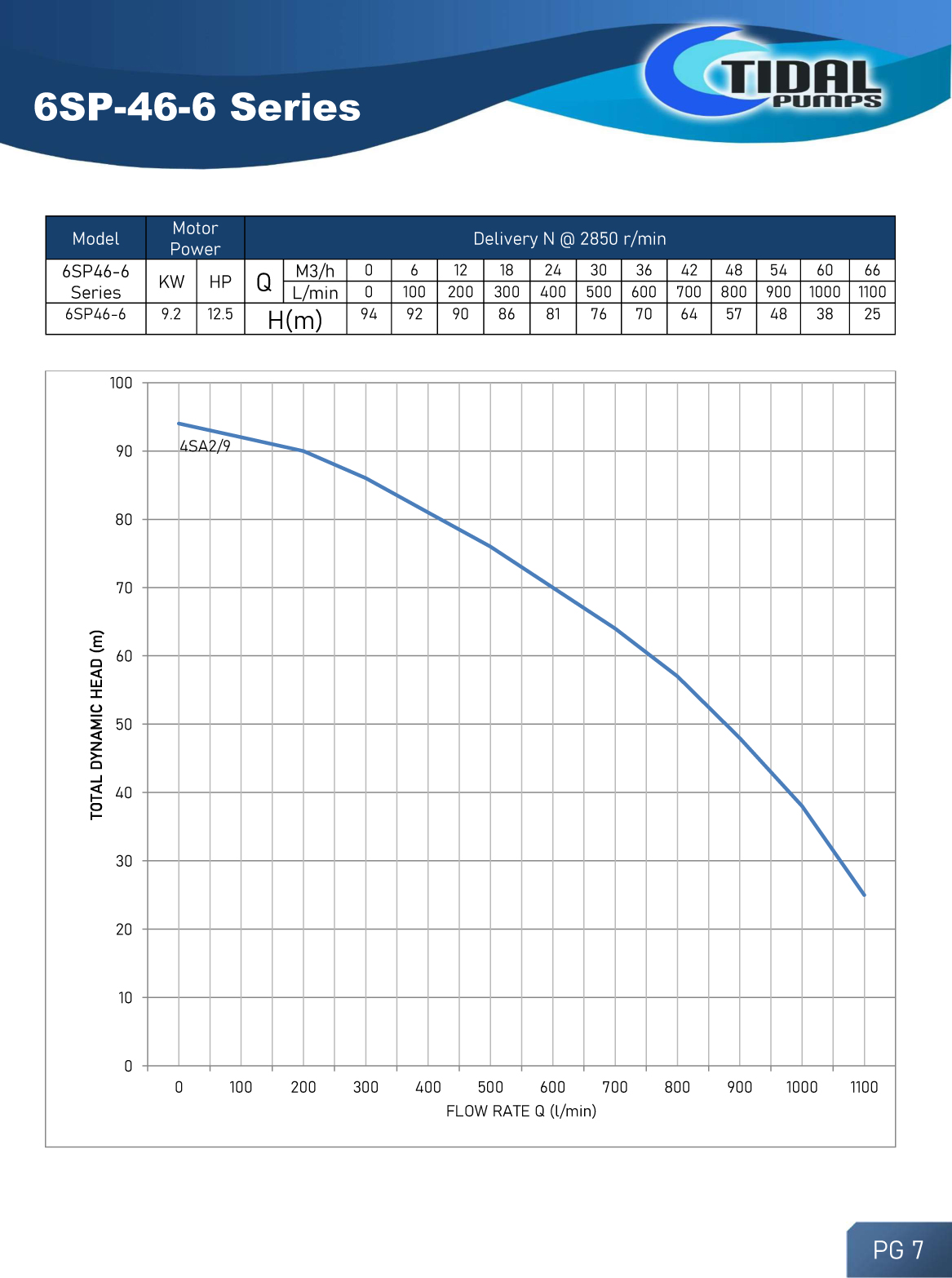

Water Delivery Pump Curve
