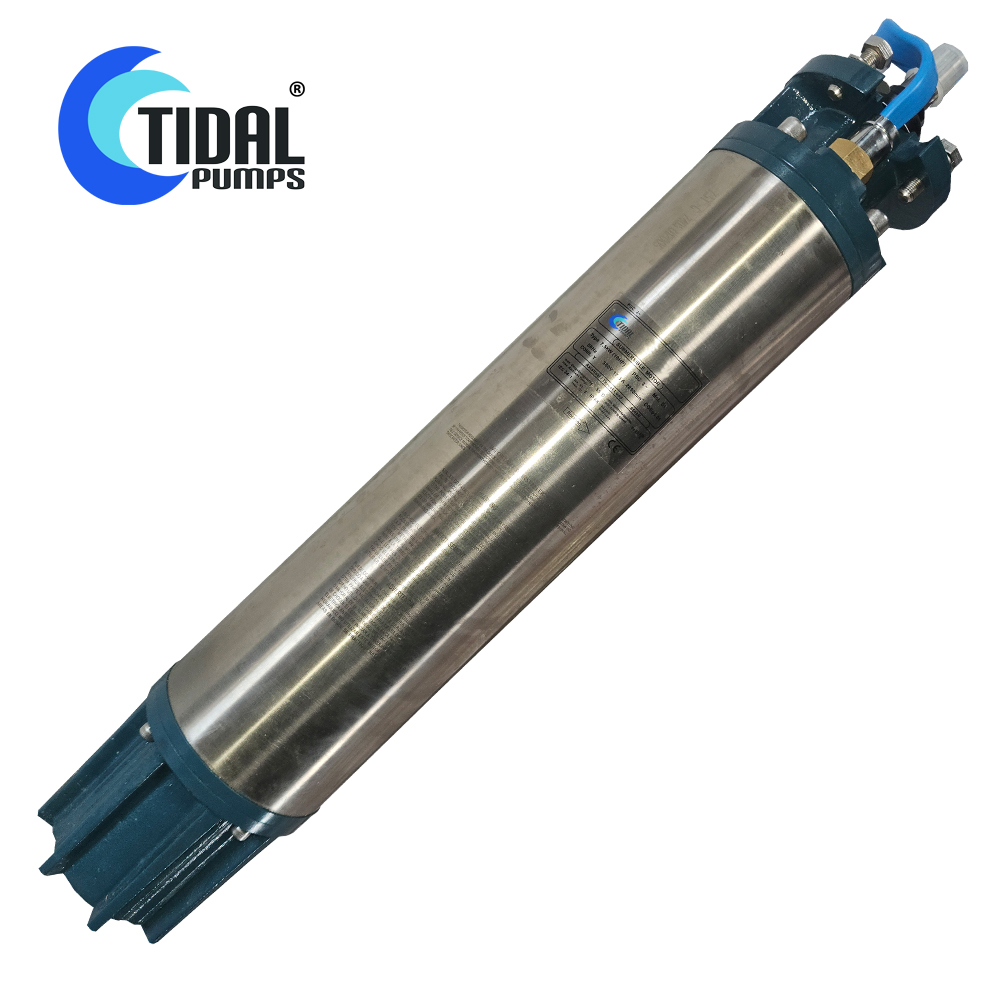

6″ Borehole Motor 380V 7.5 KW (TIDAL-6-750380M)

Description

The Tidal Pumps 6-750380M borehole 6″ submersible motor is designed to drive any Tidal Pumps 7.5KW 6″ submersible pump end

Operating Conditions

• Maximum fluid temperature : up to +50°C
• Maximum sand content : 0.5%
• Maximum Immersion : 100m
• Minimum borehole diameter : 6″ (15.24cm)

Motor

Three Phase : 380V – 415V 7.5KW 10HP / 50Hz

Warranty : 12 Month

According to our general sales conditions

Specifications

• Speed : 2850RPM
• Power : 7.5W
• Power : 10HP
• Motor Diameter : 150mm
• Motor Length : 930mm
• Pump Weight : 47KG
