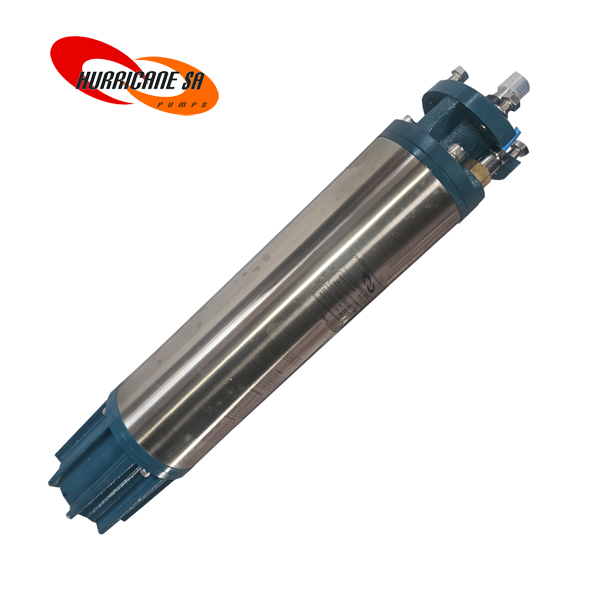

6″ Borehole Motor 380V 5.5 KW (6-550380M)

Description

  The Hurricane SA    6″ Borehole Motor 380V 5.5 KW (6-550380M)

6-550380M borehole 6″ submersible The Hurricane SA 5.5KW 6″ submersible pump end

The Hurricane SA 6-550380M -3PHASE borehole submersible motor is designed to drive any Hurricane SA 5.5 kW wet end.

The “6-inch” specification refers to the motor and wet end being sized for boreholes with a minimum 6-inch casing.

Operating Conditions

6″ Borehole Motor 380V 5.5 KW

• Maximum fluid temperature: up to +50°C
• Maximum sand content : 0.5%
• Maximum Immersion : 100m
• Minimum borehole diameter : 6″ (15.24cm)

Motor

Three Phase : 380V – 415V 5.5KW 7.7HP / 50Hz

Warranty : 12 Month

According to our general sales conditions

Specifications

• Speed : 2850RPM
• Power : 5.5W
• Power : 7.7HP
• Motor Diameter : 150mm
• Motor Length : 860mm
• Pump Weight : 43KG
