4SDS5-138-140-1300AD SOLAR KIT 4” AC/DC BRUSHLESS 1300W (PUMP, MOTOR, CONTROLLER)

Description

The Hurricane SA 4SDS5-138-140-1300AD AC/DC solar borehole pump comes complete with 1.3KW 140V submersible motor and pump automatic 140V Auto Switching control box and is capable of delivering up to 600L/hour at a depth of 125m. (Solar panels not included, requires  solar panels)

Operating Conditions

• Maximum fluid temperature : up to 35°C
• Maximum sand content : 0.25%
• Minimum borehole diameter : 4″ (10cm)

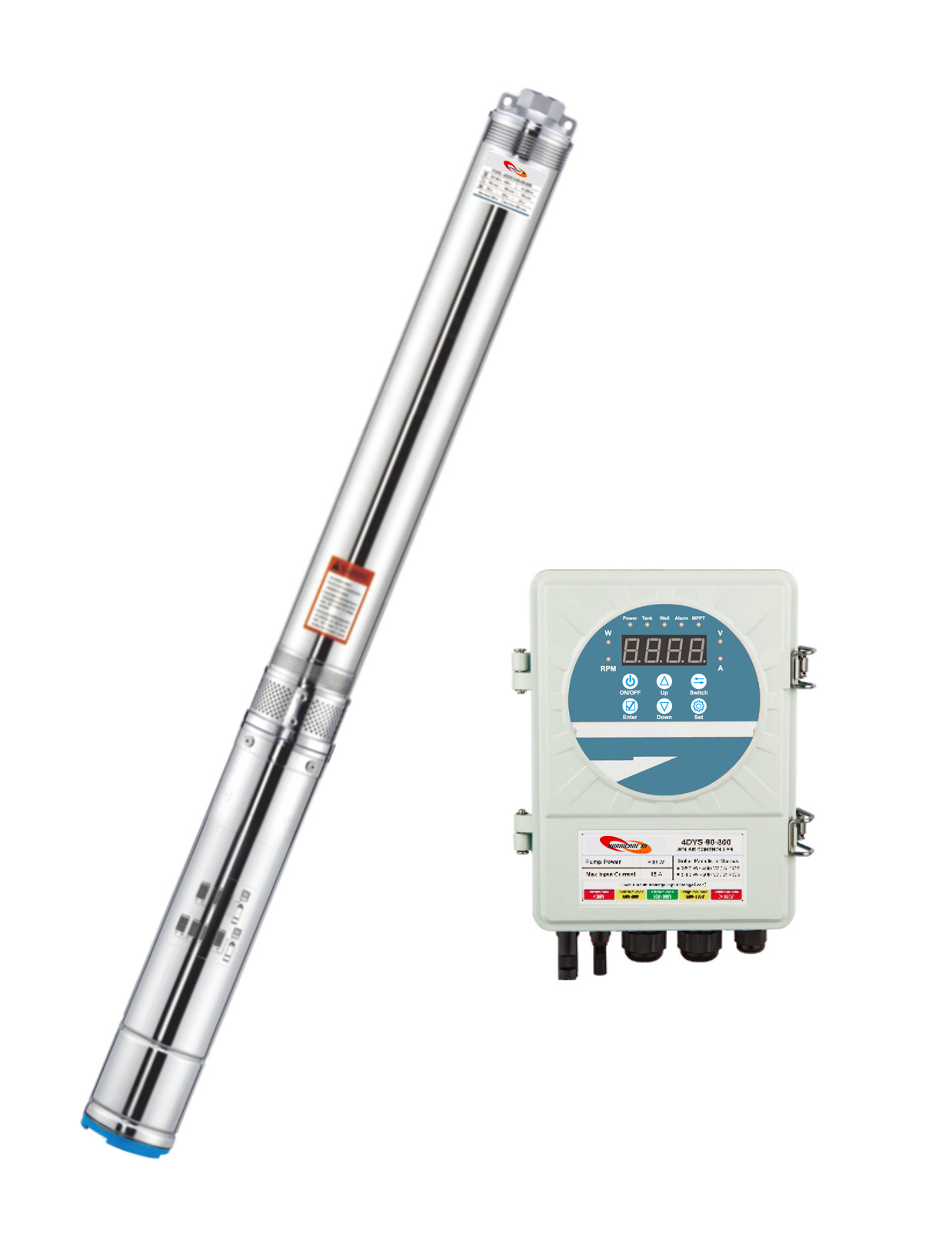

Motor, Pump & Control Box

Solar : 140V 1.3KW
Equipped with an automatic (water level sensors) control box 140V 1.3KW Auto Switching

Warranty : 12 Month

According to our general sales conditions

Specifications

• Power : 1.3KW
• H/Max : 138M

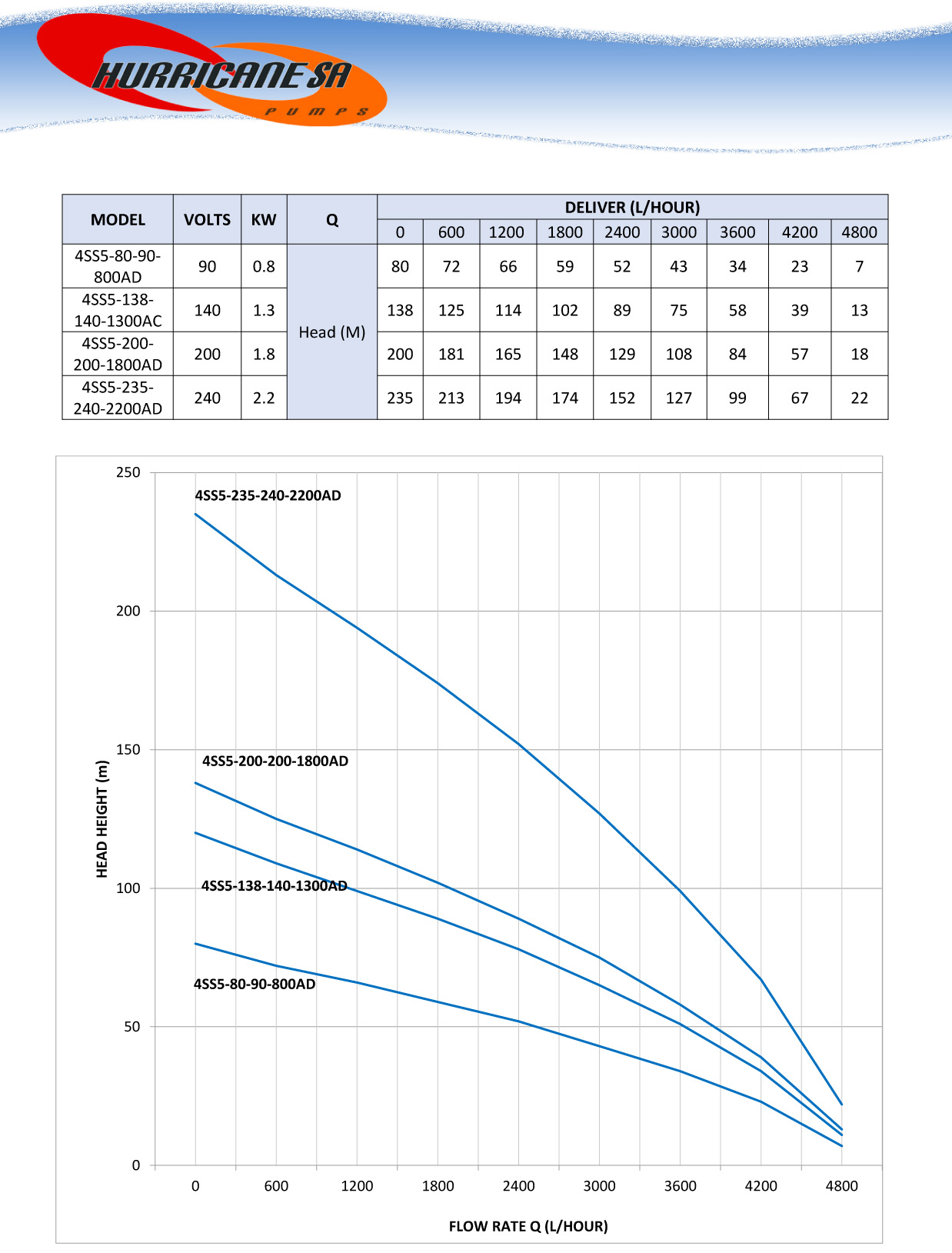

Water Delivery Pump Curve
