Description

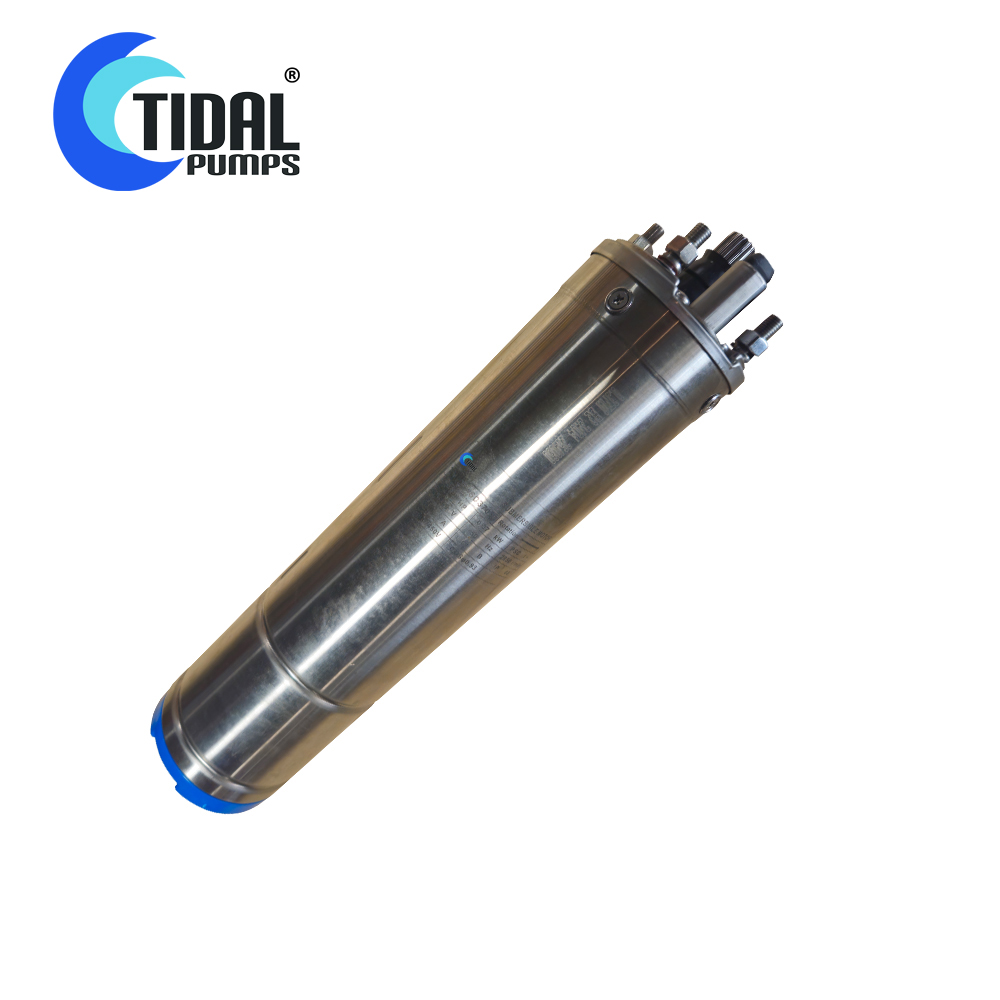

The Tidal Pumps 37220M submersible borehole motor is designed to drive any Tidal Pumps 0.37KW submersible borehole pump end.
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Minimum borehole diameter : 4″ (10.16cm)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Voltage : 220V
- Power : 0.37KW
- Power : 0.5HP
- Current : 3.7A
- Capacitor : 25µF 450V
- Protection Class : IP68
- Motor Diameter : 100mm
- Motor Length : 313mm
