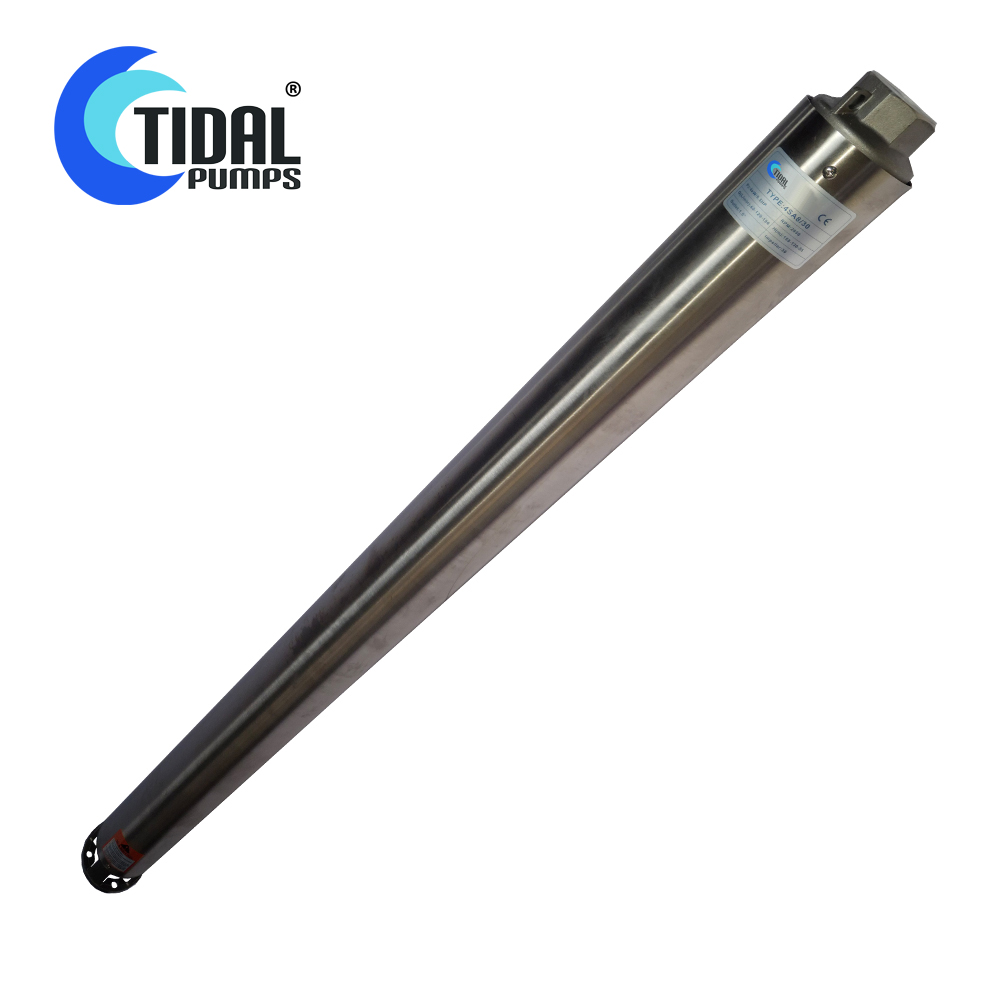

Tidal Pumps 4" Borehole Pump End 4KW (4SA8/29)
Tidal Pumps 4" Borehole Pump End 4KW Box (4SA8/29)
Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves

4″ Borehole Pump End Only 4KW (TIDAL-4SA8/29)

R2480,00 Excl. V.A.T.

The Tidal Pumps 4SA8/29 borehole submersible pump end requires a 4Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 153m. It can be connected to a 380V three phase 4KW borehole submersible motor.

Description

The Tidal Pumps 4SA8/29 borehole submersible pump end requires a 4Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 153m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 4KW 5.5HP / 50Hz
Equip with a three phase 380V automatic control box 4KW 5.5HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 4KW
  • Power : 5.5HP
  • Outlet : 40mm
  • Pump Diameter : 100mm
  • Pump Length : 1394mm
  • Pump Wieght : 11.5KG
Output 60L/min 120L/min 180L/min
Depth 153m 126m 53m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves

Additional information

Weight 12 kg
Dimensions 144 × 11 × 11 cm
