Tidal Pumps 4" Borehole Pump End 5.5KW (4SA12/20)

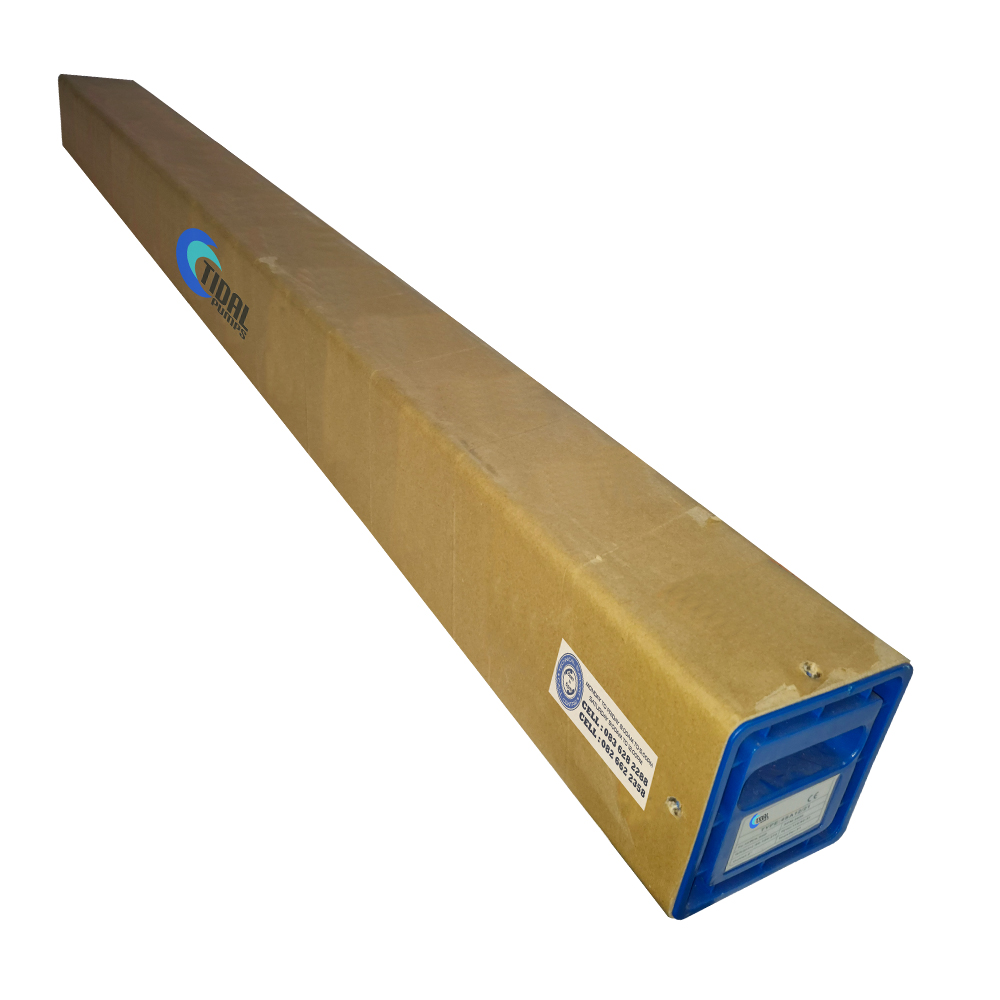

Tidal Pumps 4" Borehole Pump End 5.5KW Box (4SA12/20)
Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves

4″ Borehole Pump End Only 4KW (TIDAL-4SA12/20)

R2180,00 Excl. V.A.T.

The Tidal Pumps 4SA12/20 borehole submersible pump end requires a 4Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 104m. It can be connected to a 380V three phase 4KW borehole submersible motor.

Description

The Tidal Pumps 4SA12/20 borehole submersible pump end requires a 4Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 104m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 4KW 5.5HP / 50Hz
Equip with an automatic control box 4KW 5.5HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 4KW
  • Power : 5.5HP
  • Outlet : 50mm
  • Pump Diameter : 110mm
  • Pump Length : 1370mm
  • Pump Wieght : 11.2KG
Output 90L/min 180L/min 270L/min
Depth 104m 78m 34m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves

Additional information

Weight 11,2 kg
Dimensions 137 × 11 × 11 cm
