Tidal Pumps 4" Borehole Pump End 3KW (4SA16/12)

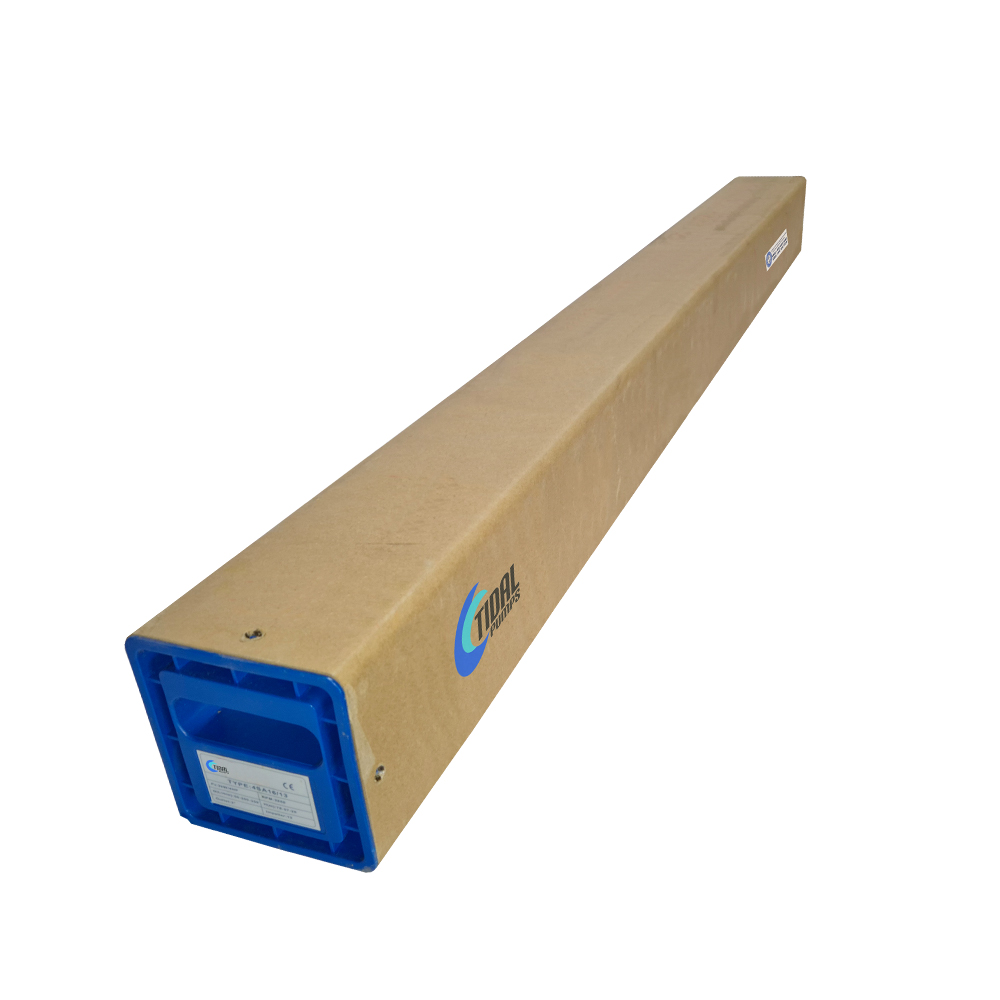

Tidal Pumps 4" Borehole Pump End 3KW Box (4SA16/12)
Tidal Pumps 4Inch 4SA16 Series Borehole Pump Curves

4″ Borehole Pump End Only 3KW (TIDAL-4SA16/12)

R1524,00 Excl. V.A.T.

The Tidal Pumps 4SA16/12 borehole submersible pump end requires a 3Kw submersible motor to drive it and is capable of delivering up to 100L/min at a depth of 66m. It can be connected to a 380V three phase 4KW borehole submersible motor.

Description

The Tidal Pumps 4SA16/12 borehole submersible pump end requires a 3Kw submersible motor to drive it and is capable of delivering up to 100L/min at a depth of 66m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 3KW 4HP / 50Hz
Equip with an automatic control box 3KW 4HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 3KW
  • Power : 4HP
  • Outlet : 50mm
  • Pump Diameter : 110mm
  • Pump Length : 1240mm
  • Pump Weight : 10.8KG
Output 100L/min 200L/min 300L/min
Depth 66m 53m 36m

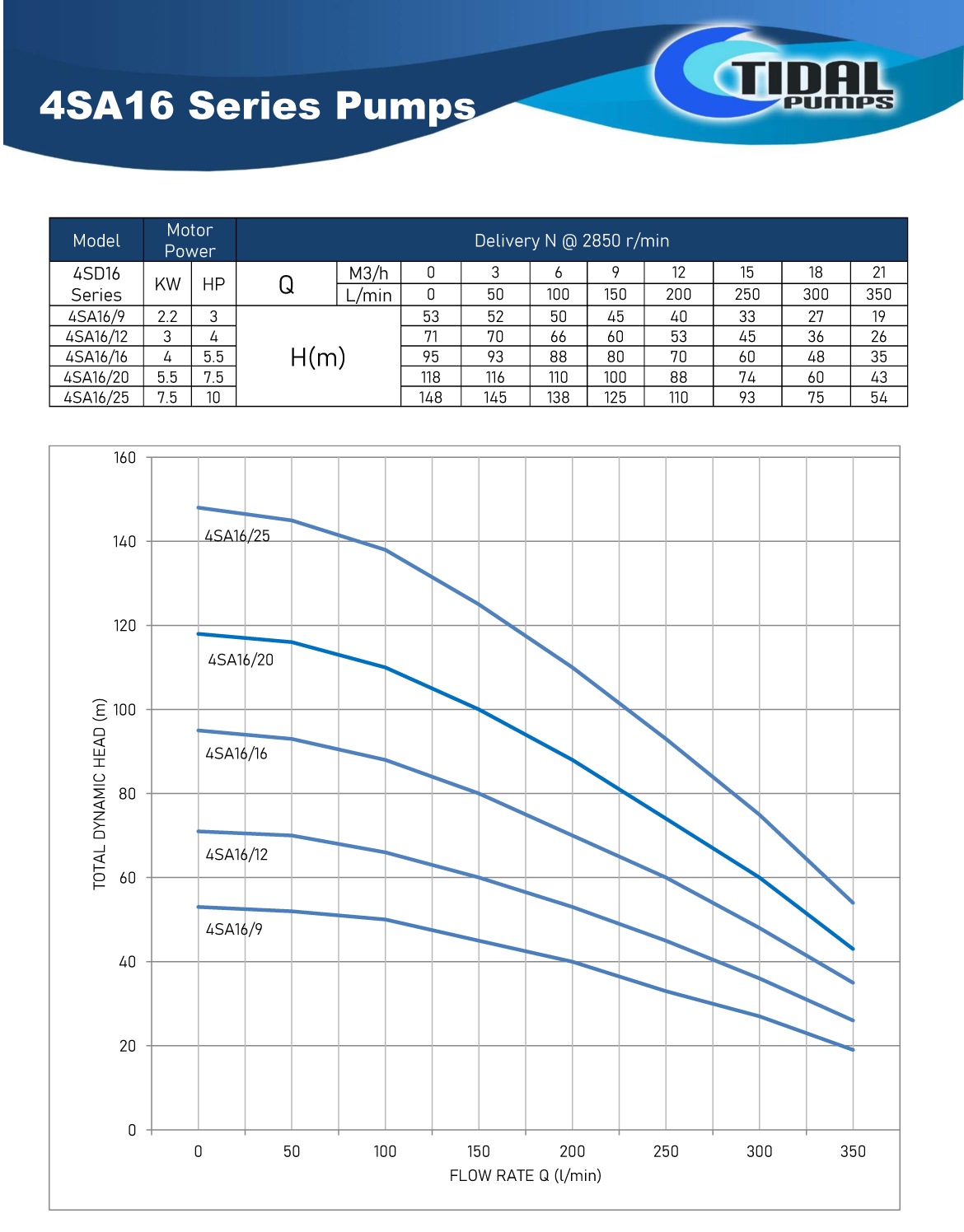

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA16 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA16 Series Borehole Pump Curves

Additional information

Weight 10,8 kg
Dimensions 124 × 11 × 11 cm
