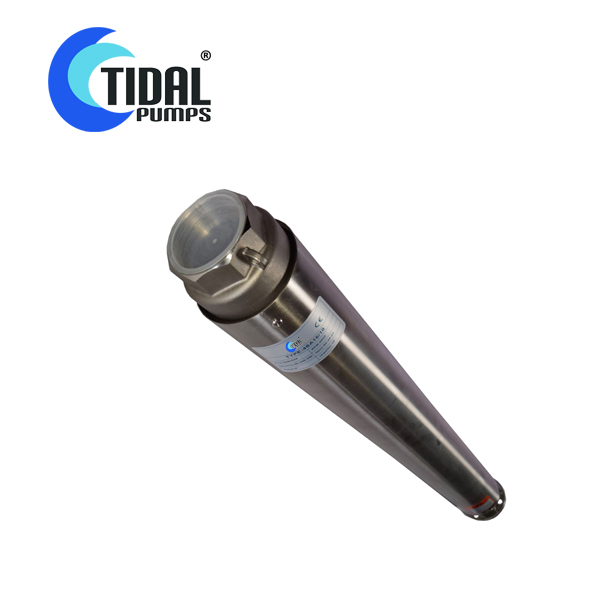

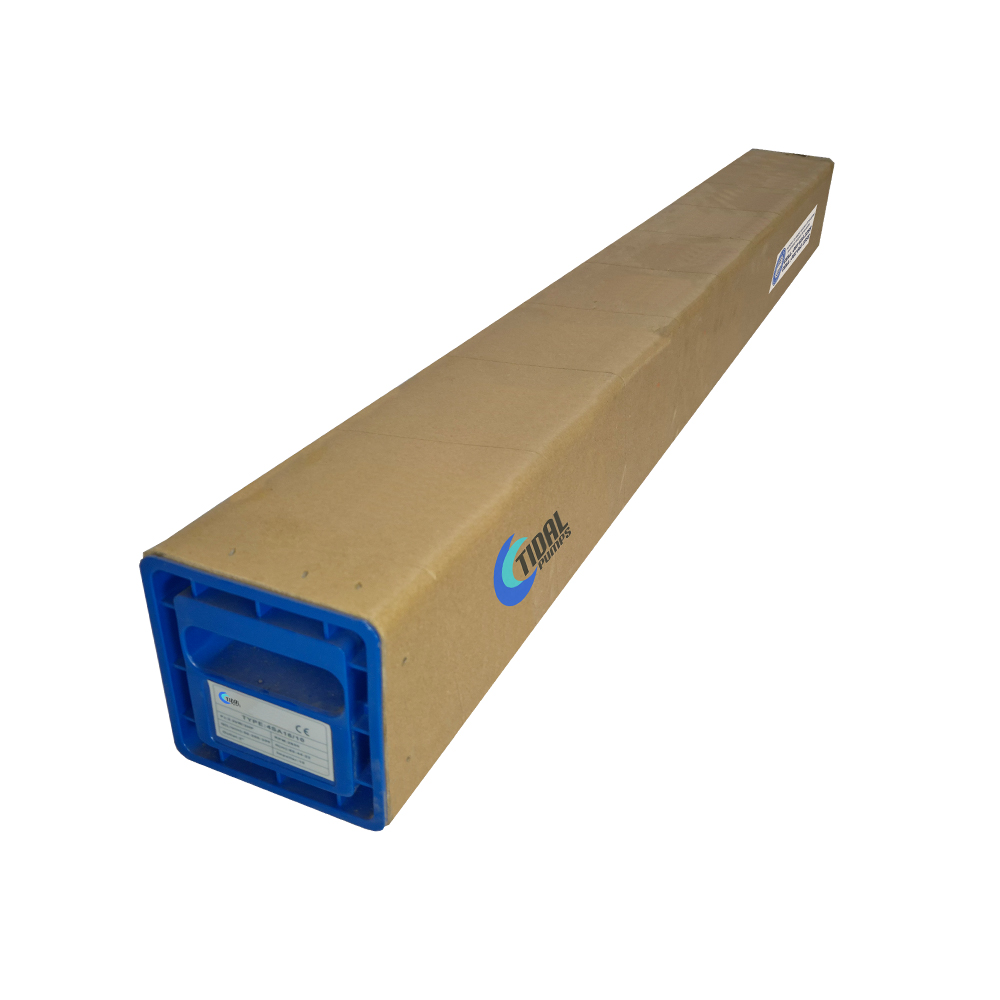

Tidal Pumps 4" Borehole Pump End 2.2KW Box (4SA16/10)
Tidal Pumps 4" Borehole Pump End 2.2KW Box (4SA16/10)
Tidal Pumps 4Inch 4SA16 Series Borehole Pump Curves

4″ Borehole Pump End Only 2.2KW (TIDAL-4SA16/10)

R1295,00 Excl. V.A.T.

The Tidal Pumps 4SA16/10 borehole submersible pump end requires a 2.2Kw submersible motor to drive it and is capable of delivering up to 100L/min at a depth of 50m. It can be connected to a 380V three phase 4KW borehole submersible motor.

Description

The Tidal Pumps 4SA16/10 borehole submersible pump end requires a 2.2Kw submersible motor to drive it and is capable of delivering up to 100L/min at a depth of 50m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 2.2KW 3HP / 50Hz
Equip with an automatic control box 2.2KW 3HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 2.2KW
  • Power : 3HP
  • Outlet : 50mm
  • Pump Diameter : 110mm
  • Pump Length : 1000mm
  • Pump Weight : 8.7KG
Output 100L/min 200L/min 300L/min
Depth 50m 40m 27m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA16 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA16 Series Borehole Pump Curves

Additional information

Weight 8,7 kg
Dimensions 100 × 11 × 11 cm
