Tidal Pumps 4" Borehole Pump End 2.2KW (4SA12/12)

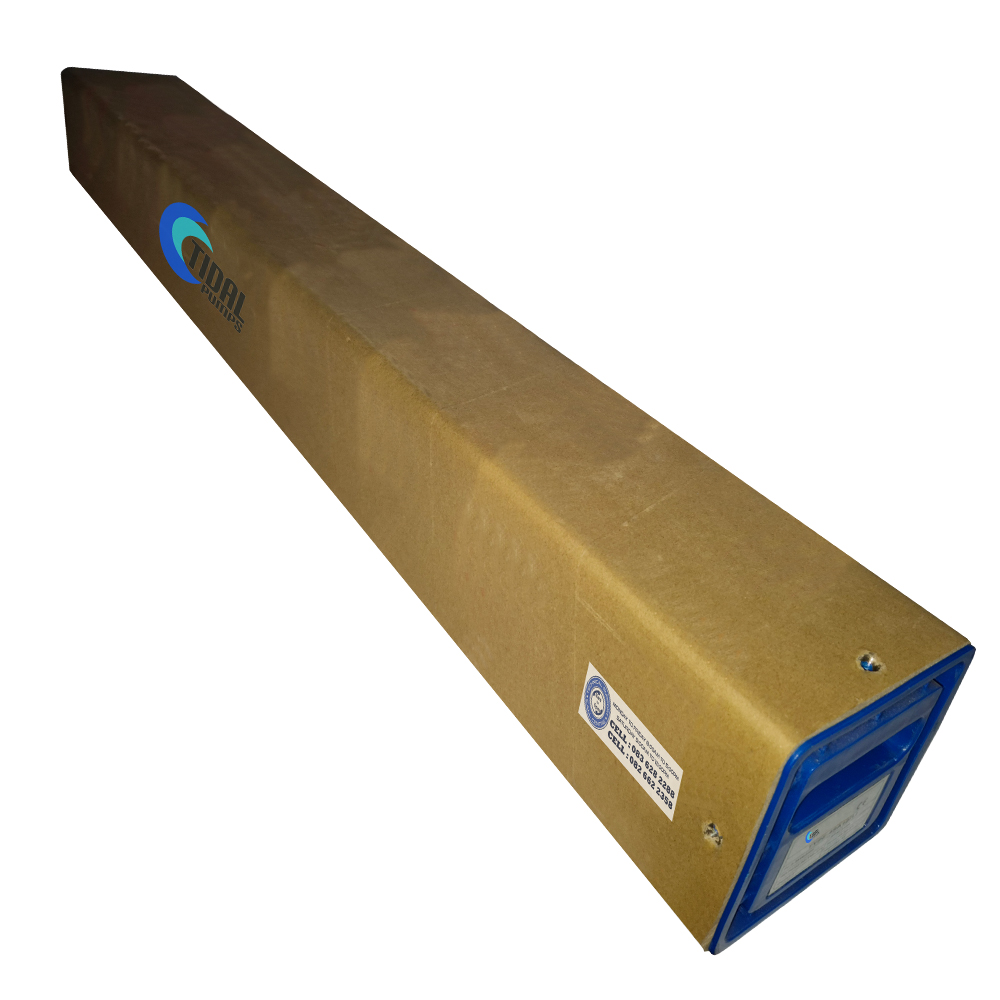

Tidal Pumps 4" Borehole Pump End 2.2KW Box (4SA12/12)
Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves

4″ Borehole Pump End Only 2.2KW (TIDAL-4SA12/12)

R1900,00 Excl. V.A.T.

The Tidal Pumps 4SA12/12 borehole submersible pump end requires a 2.2Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 62m. It can be connected to either a 220V three phase 2.2KW borhole submersible motor or a 380V three phase 2.2KW borehole submersible motor.

Description

The Tidal Pumps 4SA12/12 borehole submersible pump end requires a 2.2Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 62m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Single Phase : 220V – 240V 2.2KW 3HP / 50Hz or
Three Phase : 380V – 415V 2.2KW 3HP / 50Hz
Equip with either a standard (manual) or an automatic control box 2.2KW 3HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 2.2KW
  • Power : 3HP
  • Outlet : 50mm
  • Pump Diameter : 100mm
  • Pump Length : 910mm
  • Pump Wieght : 7.3KG
Output 90L/min 180L/min 270L/min
Depth 62m 47m

20m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves

Additional information

Weight 7,3 kg
Dimensions 91 × 11 × 11 cm
