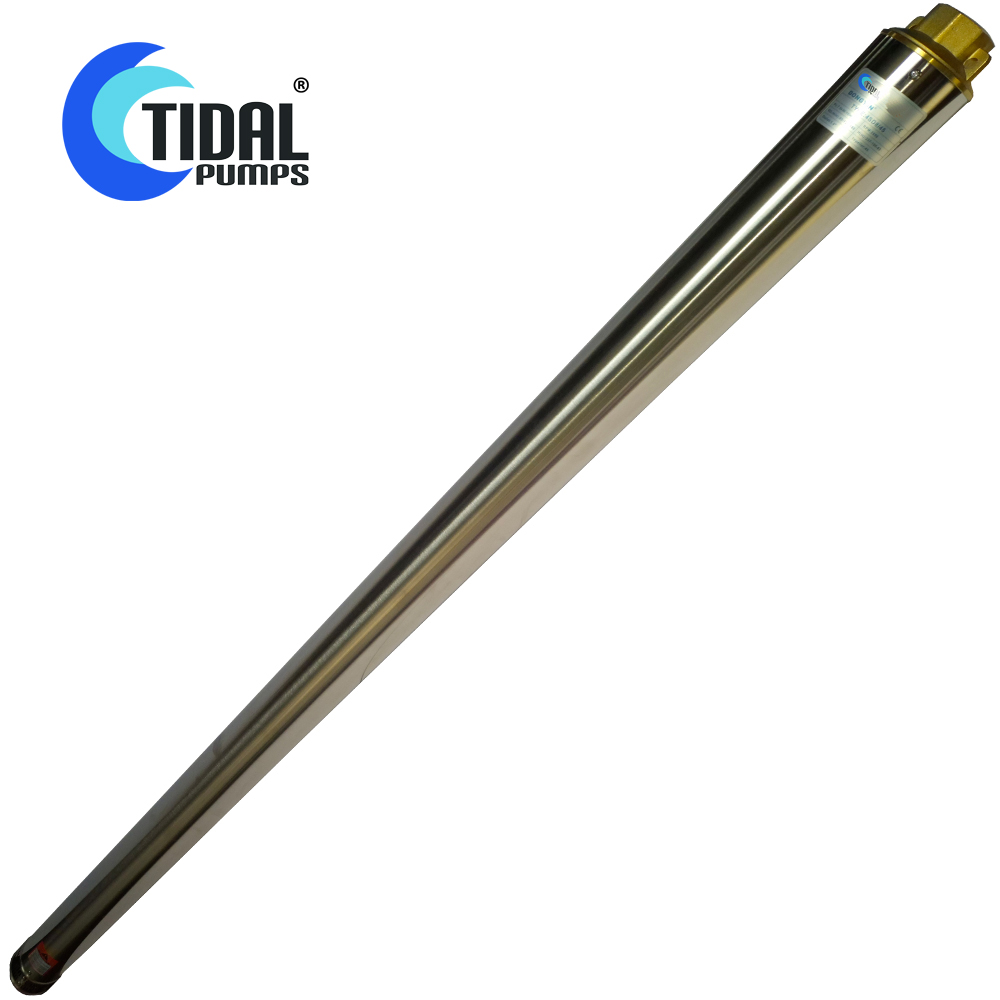

Tidal Pumps 4" Borehole Pump End 7.5KW (4SA8/45)

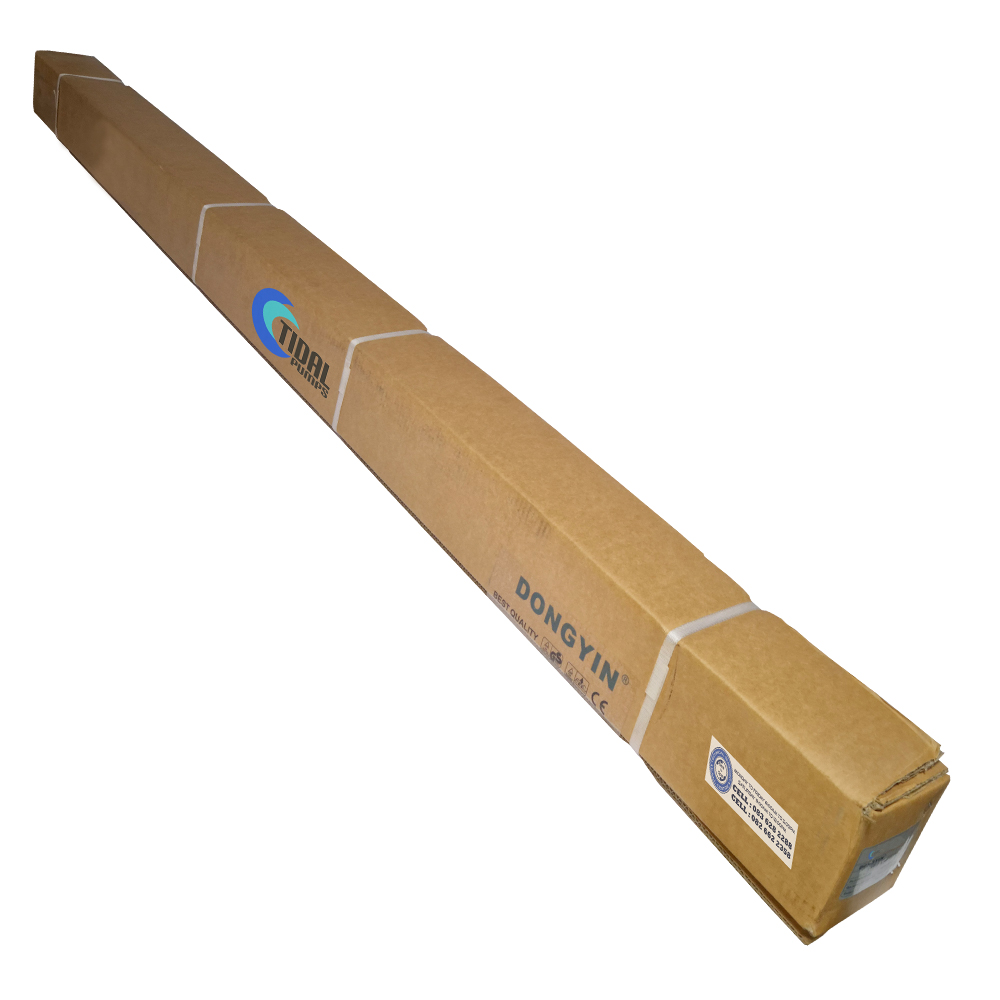

Tidal Pumps 4" Borehole Pump End 7.5KW Box (4SA8/45)
Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves

4″ Borehole Pump End 7.5KW (TIDAL-4SA8/45)

R3100,00 Excl. V.A.T.

The Tidal Pumps 4SA8/45 borehole submersible pump end requires a 7.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 237m. It can be connected to a 380V three phase 7.5KW borehole submersible motor.

Description

The Tidal Pumps 4SA8/45 borehole submersible pump end requires a 7.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 237m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 7.5KW 10HP / 50Hz
Equip with a three phase 380V automatic control box 7.5KW 10HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 7.5KW
  • Power : 10HP
  • Outlet : 40mm
  • Pump Diameter : 100mm
  • Pump Length : 2044mm
  • Pump Weight : 17.7KG
Output 60L/min 120L/min 180L/min
Depth 237m 195m 83m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA8 Series Borehole Pump Curves



Additional information

Weight 16,1 kg
Dimensions 199 × 11 × 13 cm
