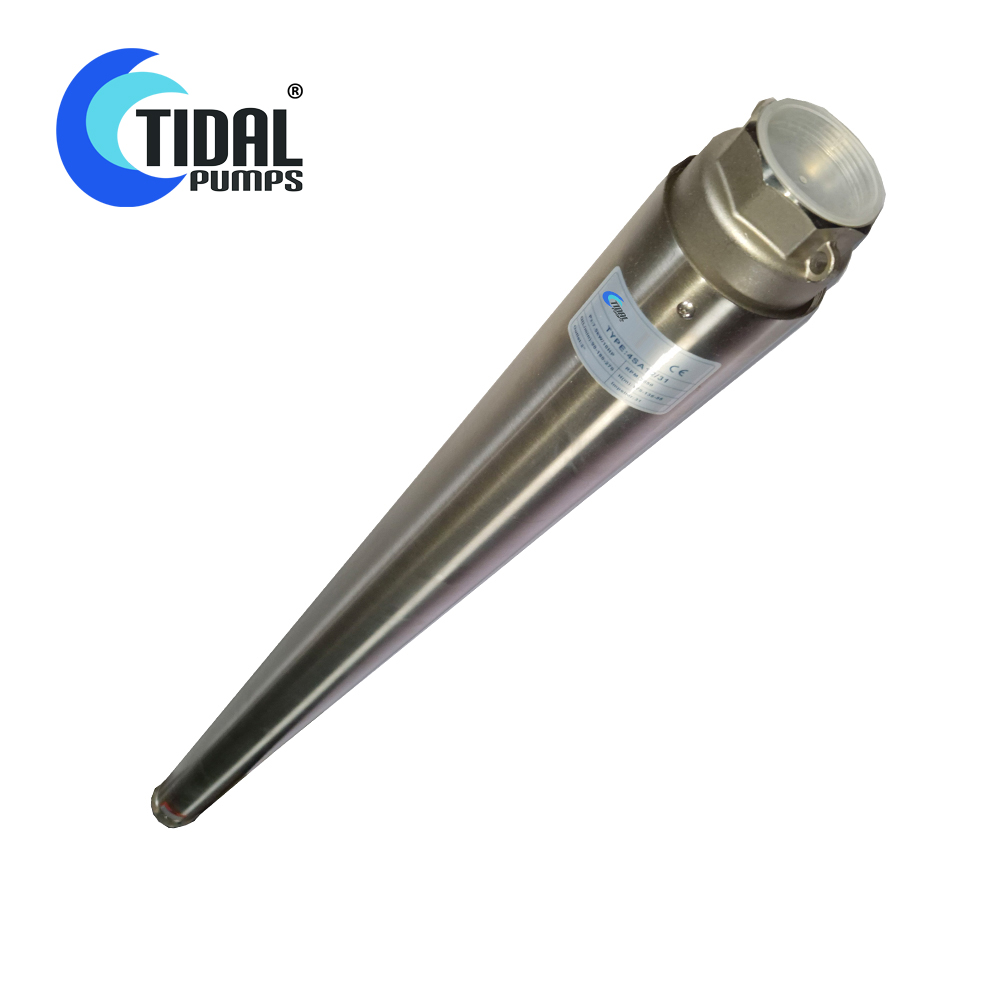

Tidal Pumps 4" Borehole Pump End 7.5KW (4SA12/32)

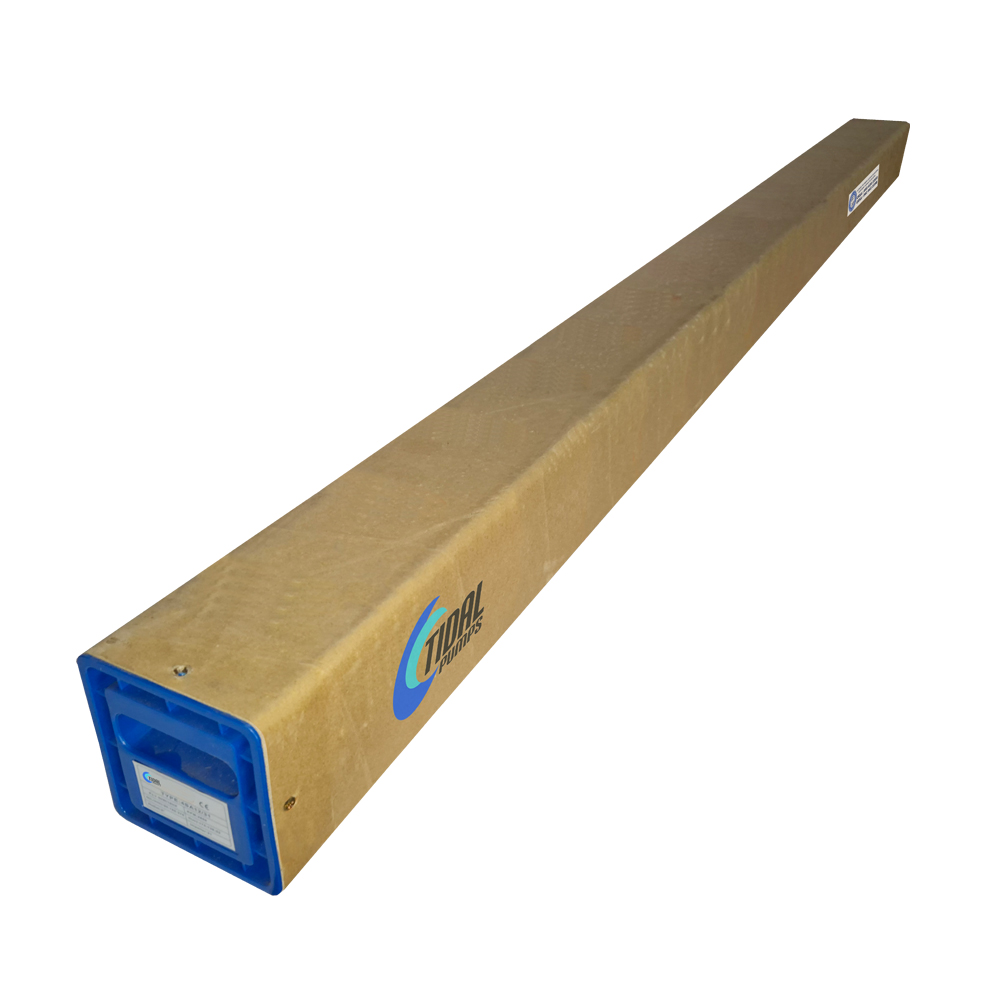

Tidal Pumps 4" Borehole Pump End 7.5KW Box (4SA12/32)

Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves

4″ Borehole Pump End 7.5KW (TIDAL-4SA12/32)

Original price was: R3200,00.Current price is: R3000,00. Excl. V.A.T.

The Tidal Pumps 4SA12/32 borehole submersible pump end requires a 7.5motor to drive it and is capable of delivering up to 90L/min at a depth of 171m. It can be connected to a 380V three phase 7.5KW borehole submersible motor.

Description
Additional information

Description

The Tidal Pumps 4SA12/32 borehole submersible pump end requires a 7.5motor to drive it and is capable of delivering up to 90L/min at a depth of 171m.

Operating Conditions

Maximum fluid temperature : up to 35°C
Maximum sand content : 0.25%
Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 7.5KW 10HP / 50Hz
Equip with an automatic control box 7.5KW 10HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

Speed : 2850RPM
Power : 7.5KW
Power : 10HP
Outlet : 32mm
Pump Diameter : 100mm
Pump Length : 2042mm
Pump Wieght : 19.3KG

Output	90L/min	180L/min	270L/min
Depth	171m	123m	41m

Water Delivery Pump Curve

Additional information

Weight	15,4 kg
Dimensions	184 × 11 × 11 cm
