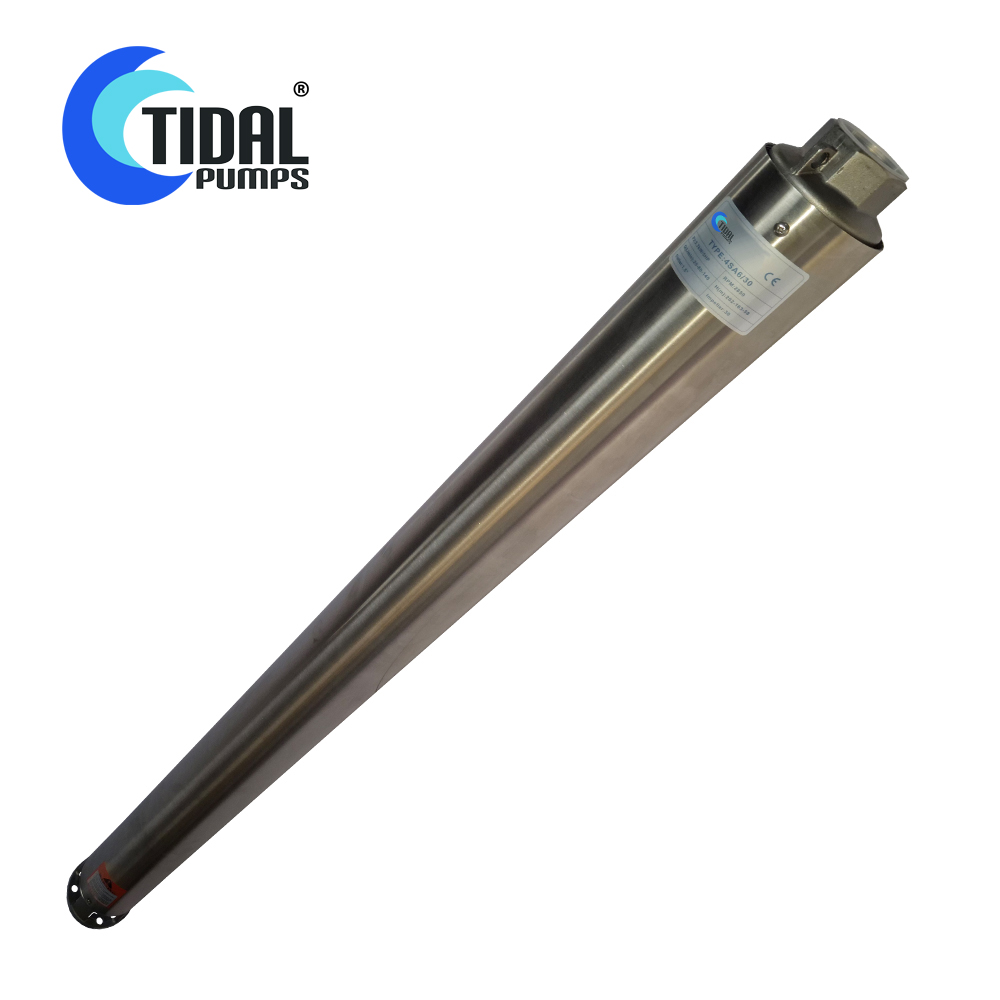

4″ Borehole Pump End 4KW (TIDAL-4SA6/35)

Description

The Tidal Pumps 4SA6/35 borehole submersible pump end requires a 4Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 229m.

Operating Conditions

• Maximum fluid temperature : up to 35°C
• Maximum sand content : 0.25%
• Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 4KW 5.5HP / 50Hz
Equip with either a standard (manual) or an automatic control box 4KW 5.5HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

• Speed : 2850RPM
• Power : 4KW
• Power : 5.5HP
• Outlet : 40mm
• Pump Diameter : 100mm
• Pump Length : 1540mm
• Pump Wieght : 13.1KG

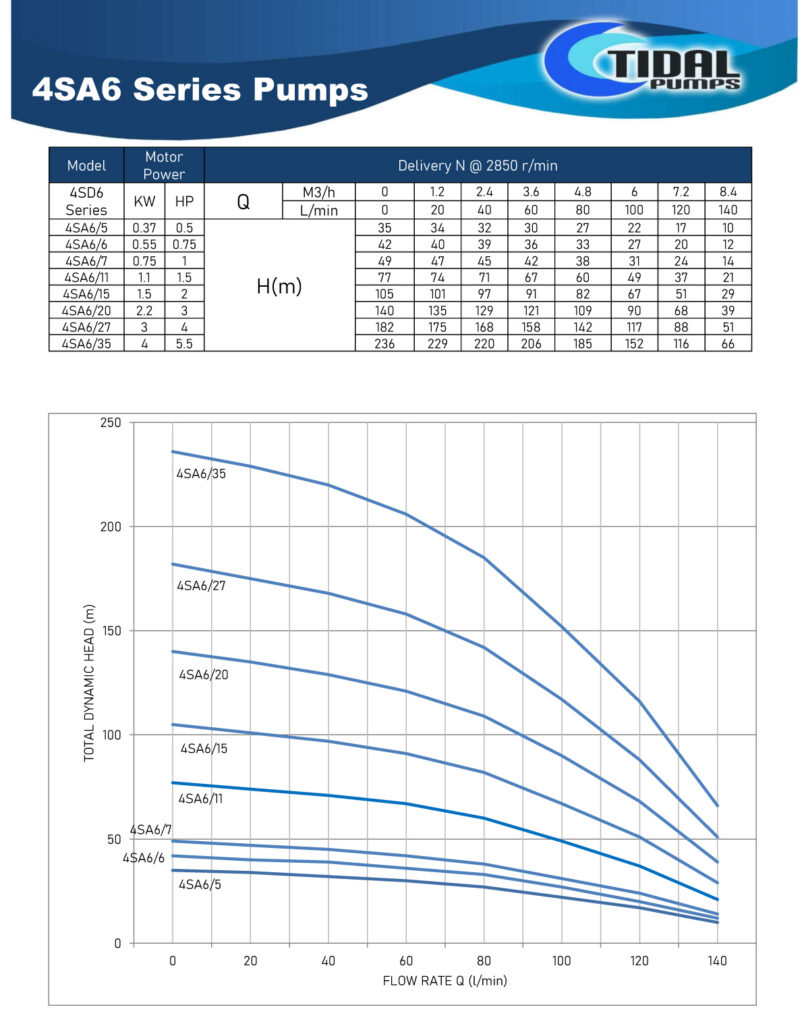

Water Delivery Pump Curve
