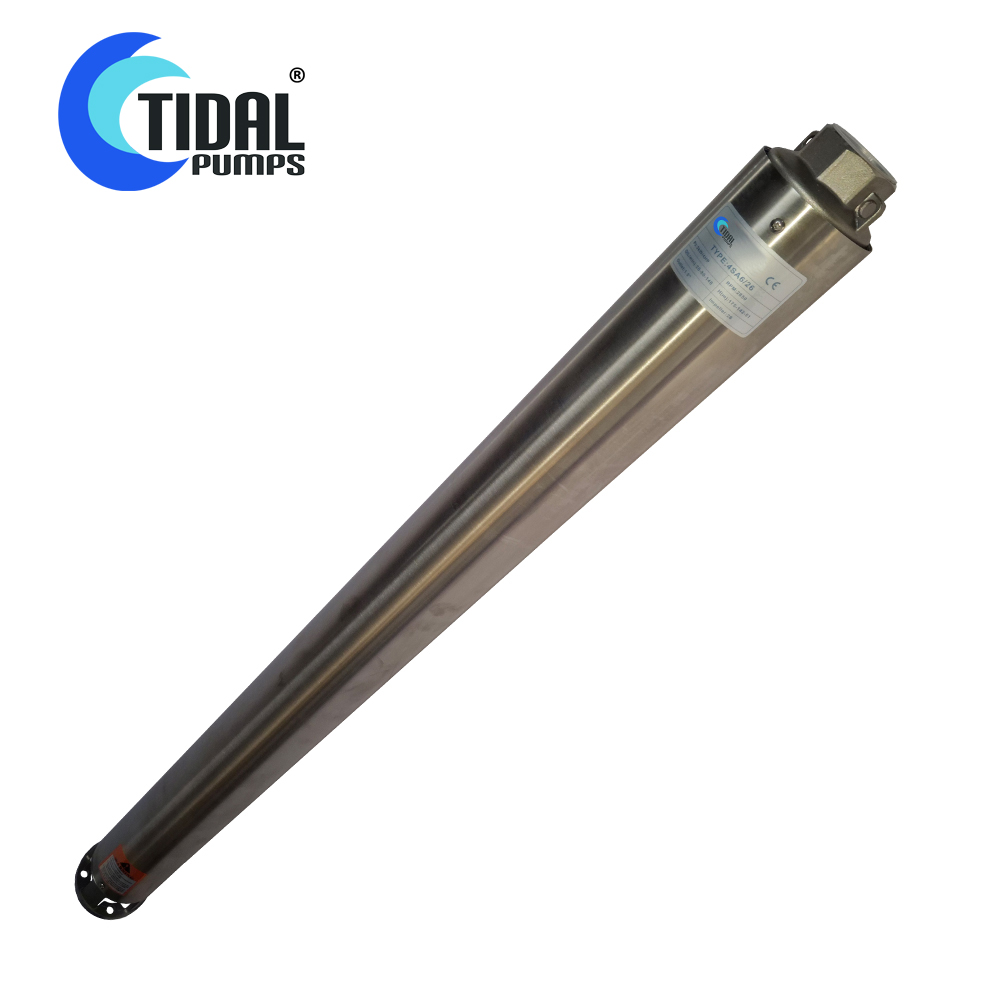

Tidal Pumps 4" Borehole Pump End 3KW (4SA6/26)

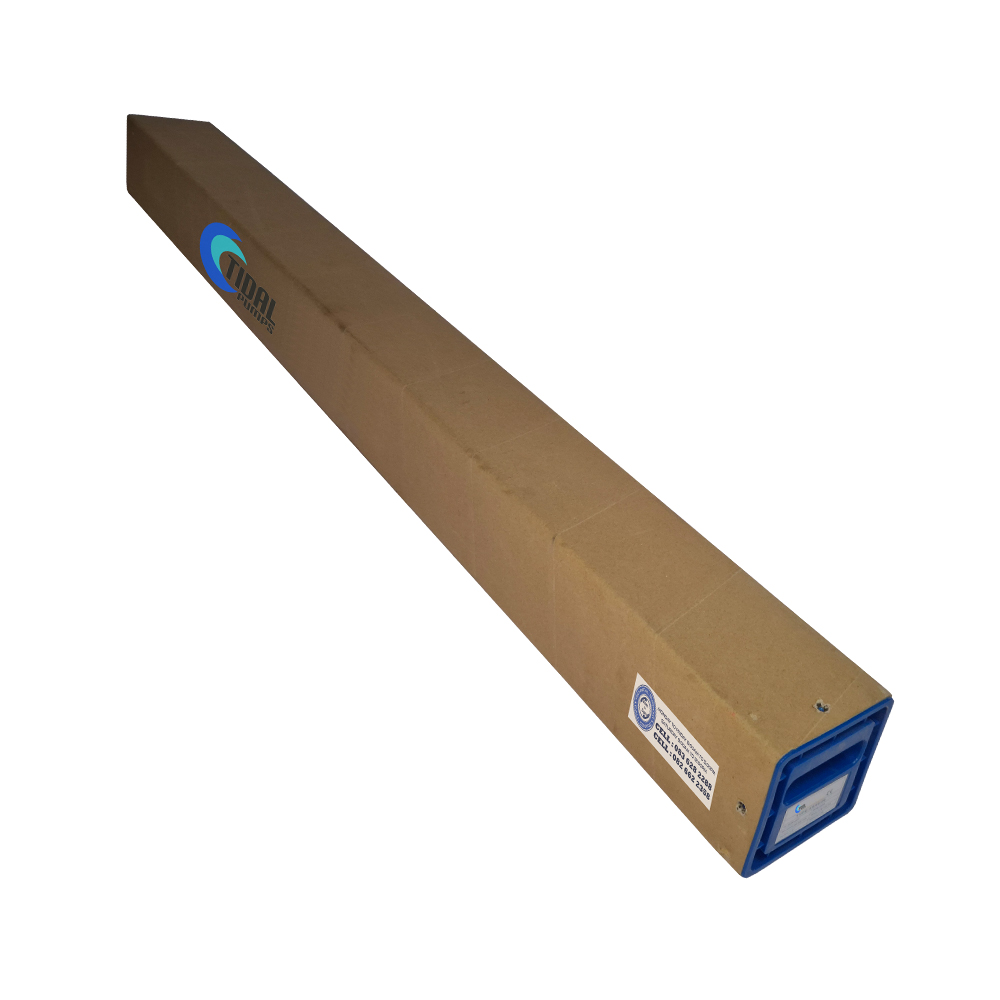

Tidal Pumps 4" Borehole Pump End 3KW Box (4SA6/26)
Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves

4″ Borehole Pump End 3KW (TIDAL-4SA6/26)

R1650,00 Excl. V.A.T.

The Tidal Pumps 4SA6/26 borehole submersible pump end requires a 3KW submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 175m. It can be connected to a 380V three phase 3KW borehole submersible motor.

Description

The Tidal Pumps 4SA6/26 borehole submersible pump end requires a 3KW submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 175m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 3KW 4HP  / 50Hz
Equip with either a standard (manual) or an automatic control box 3KW 4HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 3KW
  • Power : 4HP
  • Outlet : 40mm
  • Pump Diameter : 100mm
  • Pump Length : 1230mm
  • Pump Weight : 10,3KG
Output 20L/min 100L/min 140L/min
Depth 175m 117m 51m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves

Additional information

Weight 10,3 kg
Dimensions 123 × 11 × 11 cm
