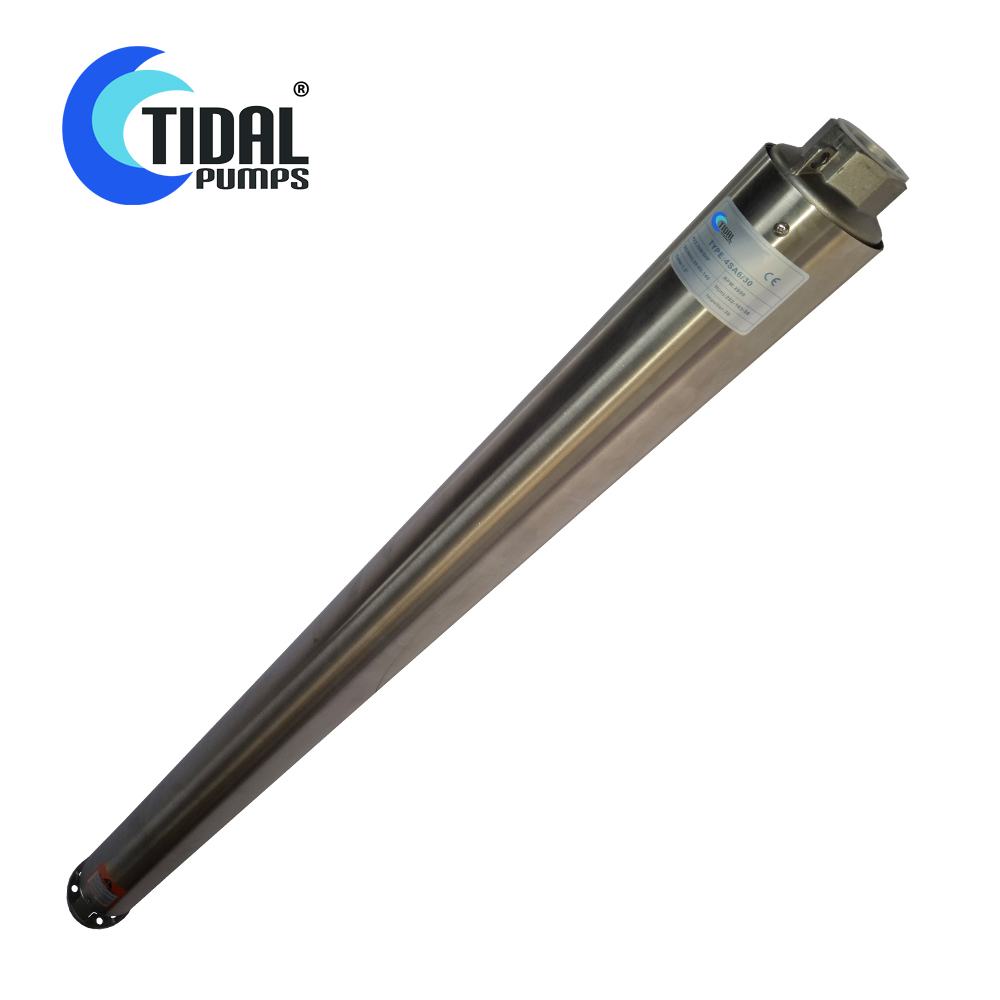

Tidal Pumps 4" Borehole Pump End 3.7KW (4SA6/30)

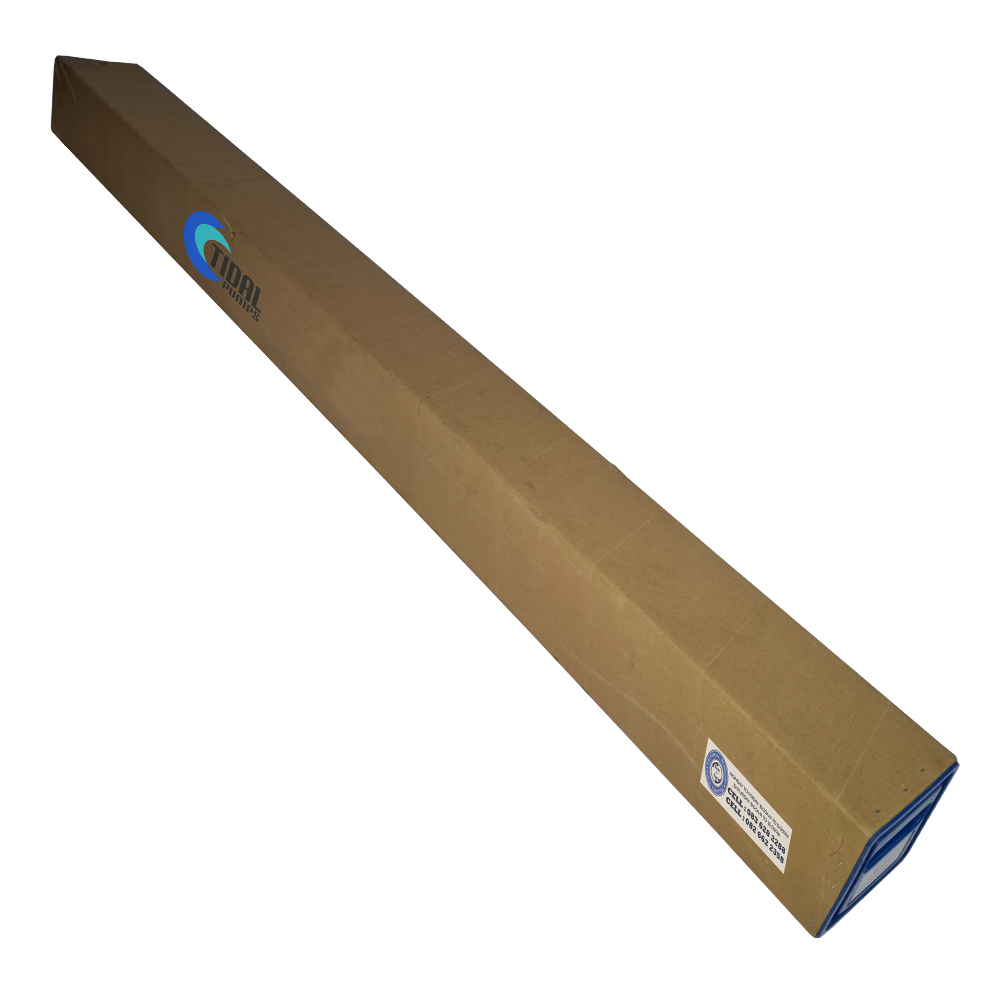

Tidal Pumps 4" Borehole Pump End 3.7KW Box (4SA6/30)
Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves

4″ Borehole Pump End 3.7KW (TIDAL-4SA6/30)

R1800,00 Excl. V.A.T.

The Tidal Pumps 4SA6/30 borehole submersible pump end requires a 3.7KW or 4Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 202m. It can be connected to a 380V three phase 3.7kw or 4KW borehole submersible motor.

Description

The Tidal Pumps 4SA6/30 borehole submersible pump end requires a 3.7KW or 4Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 202m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 3.7KW 5hp / 50Hz

Three Phase : 380V – 415V 4KW 5.5HP/ 50Hz
Equip with either a standard (manual) or an automatic control box 4KW 5.5HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 3.7KW
  • Power : 5HP
  • Outlet : 40mm
  • Pump Diameter : 100mm
  • Pump Length : 1360mm
  • Pump Wieght : 11.6KG
Output 20L/min 100L/min 140L/min
Depth 202m 134m 58m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves

Additional information

Weight 11,6 kg
Dimensions 136 × 11 × 11 cm
