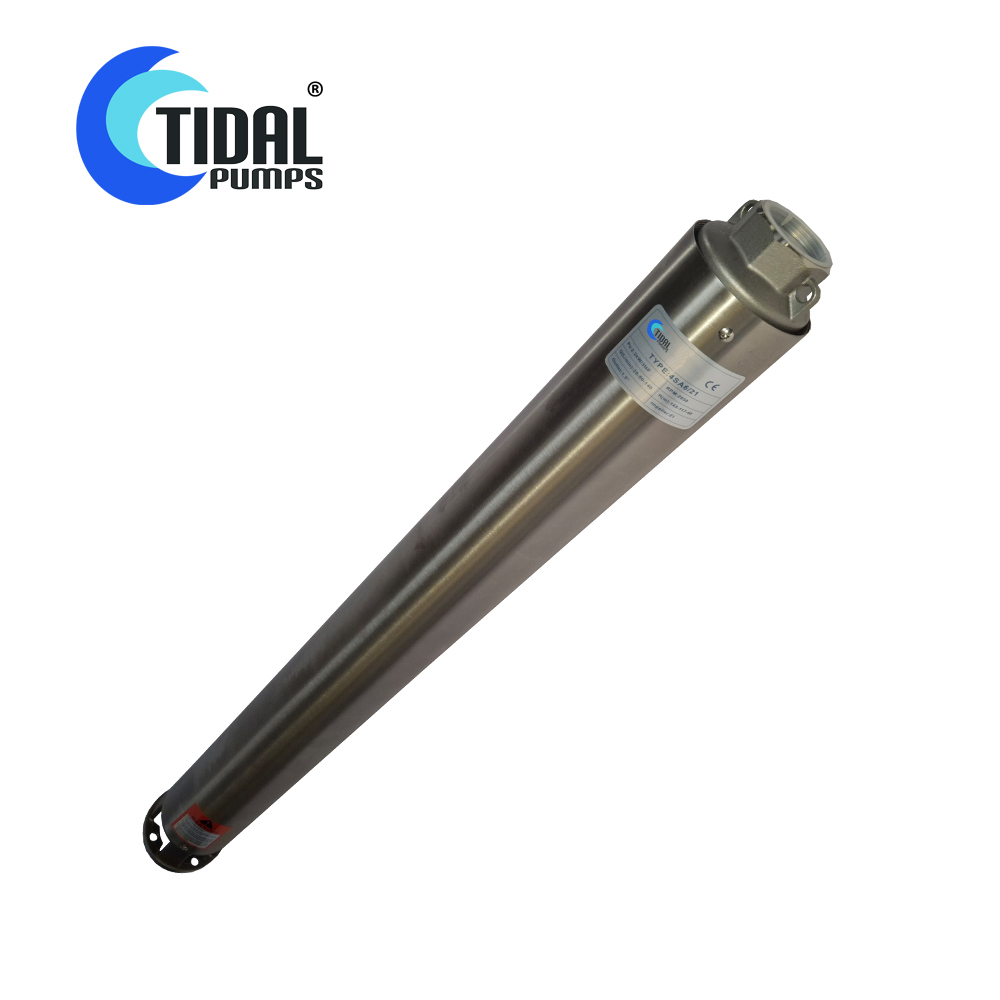

Tidal Pumps 4" Borehole Pump End 2.2KW (4SA6/20)

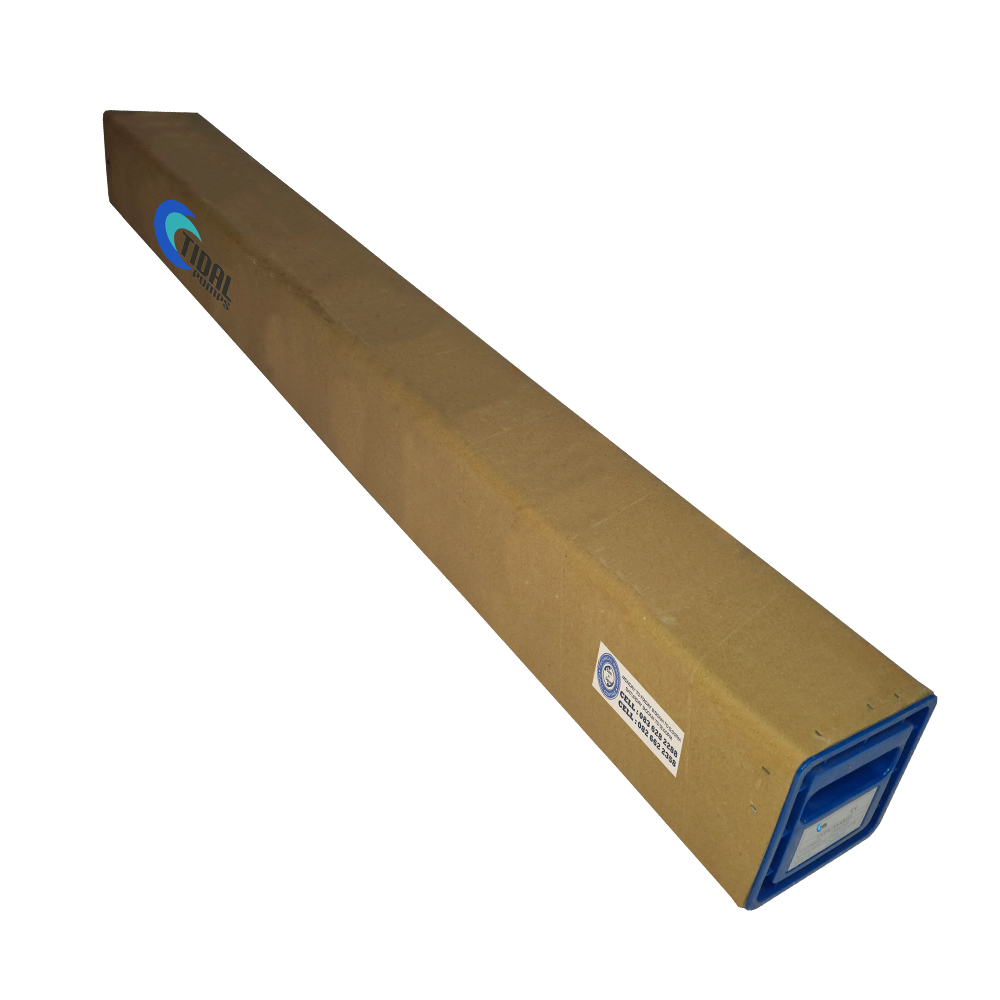

Tidal Pumps 4" Borehole Pump End 2.2KW Box (4SA6/20)
Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves

4″ Borehole Pump End 2.2KW (TIDAL-4SA6/20)

R1350,00 Excl. V.A.T.

The Tidal Pumps 4SA6/20 borehole submersible pump end requires a 2.2KW submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 135m. It can be connected to a 380V three phase or Single Phase 220V 2.2KW borehole submersible motor.

Description

The Tidal Pumps 4SA6/20 borehole submersible pump end requires a 2.2KW submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 135m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Single Phase : 220V – 240V 2.2KW 3HP  / 50Hz
Three Phase : 380V – 415V 2.2KW 3HP  / 50Hz
Equip with either a standard (manual) or an automatic 380V three phase or 220V single phase control box 2.2KW 3HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 2.2KW
  • Power : 3HP
  • Outlet : 40mm
  • Pump Diameter : 100mm
  • Pump Length : 1040mm
  • Pump Weight : 8.6KG
Output 20L/min 100L/min 140L/min
Depth 135m 90m 39m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA6 Series Borehole Pump Curves

Additional information

Weight 8,6 kg
Dimensions 104 × 11 × 11 cm
