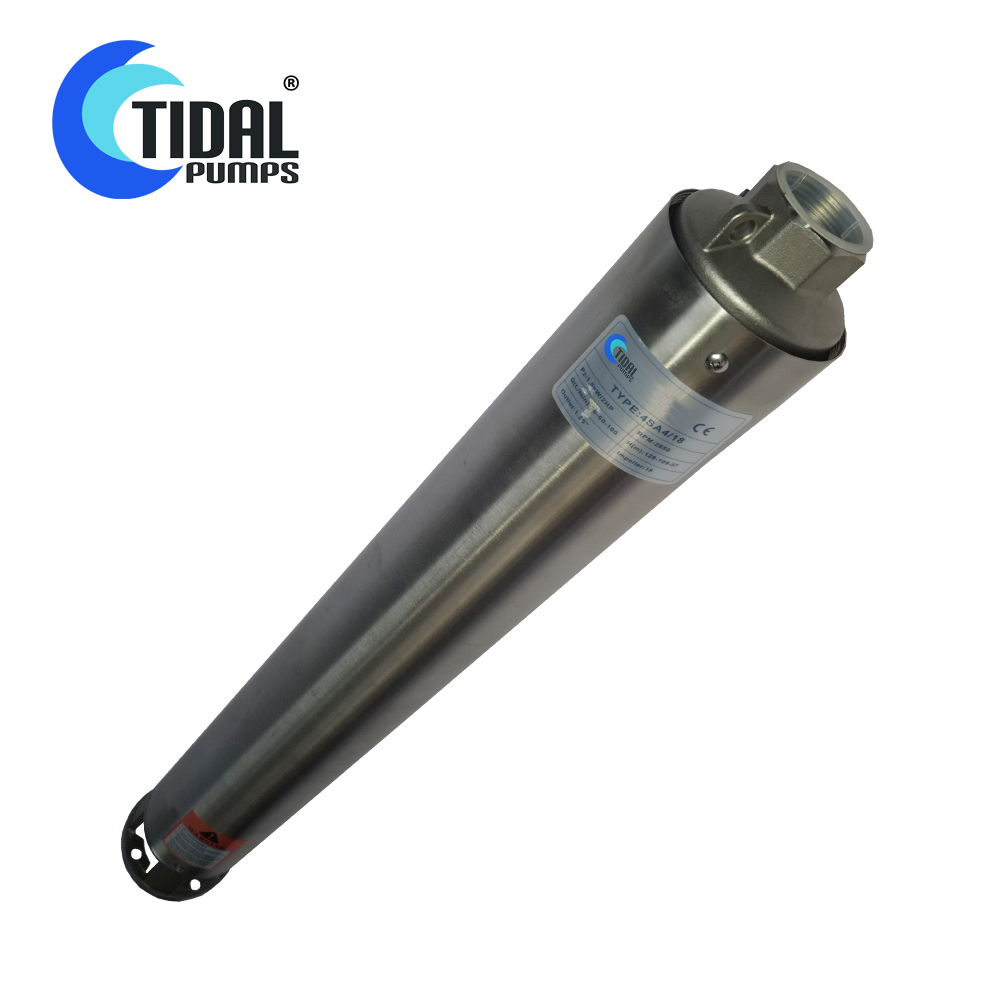

Tidal Pumps 4" Borehole Pump End 1.5KW (4SA4/18)
Tidal Pumps 4" Borehole Pump End 1.5KW Box (4SA4/18)
Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves

4″ Borehole Pump End 1.5KW (TIDAL-4SA4/18)

R1360,00 Excl. V.A.T.

The Tidal Pumps 4SA4/18 borehole submersible pump end requires a 1.5Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 124m. It can be connected to either a 220V single phase 1.5KW borehole submersible motor or a 380V three phase 1.5KW borehole submersible motor.

Description

The Tidal Pumps 4SA4/18 borehole submersible pump end requires a 1.5Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 124m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Single Phase : 220V – 240V 1.5KW 2HP / 50Hz or
Three Phase : 380V – 415V 1.5KW 2HP / 50Hz
Equip with either a standard (manual) or an automatic control box 1.5KW 2HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 1.5KW
  • Power : 2HP
  • Outlet : 32mm
  • Pump Diameter : 100mm
  • Pump Length : 782mm
  • Pump Wieght : 6.4KG
Output 20L/min 60L/min 100L/min
Depth 124m 99m 41m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves

Additional information

Weight 6,9 kg
Dimensions 82 × 11 × 11 cm
