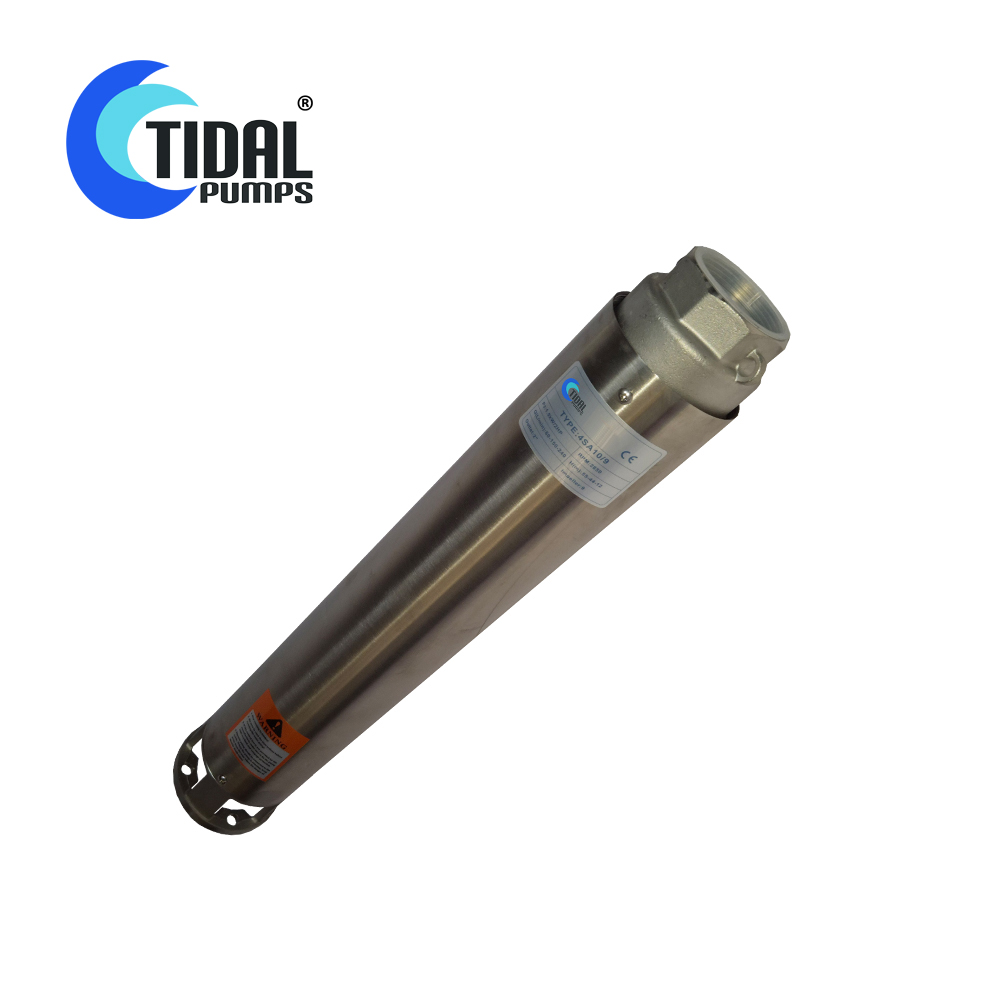

4″ Borehole Pump End 1.5KW (TIDAL-4SA10/9)

Description

The Tidal Pumps 4SA10/9 borehole submersible pump end requires a 1.5Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 52m.

Operating Conditions

• Maximum fluid temperature : up to 35°C
• Maximum sand content : 0.25%
• Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Single Phase : 220V – 240V 1.5KW 2HP / 50Hz or
Three Phase : 380V – 415V 21.5KW 2HP / 50Hz
Equip with either a standard (manual) or an automatic control box 1.5KW 2HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

• Speed : 2850RPM
• Power : 1.5KW
• Power : 2HP
• Outlet : 32mm
• Pump Diameter : 100mm
• Pump Length : 660mm
• Pump Wieght : 2.3KG

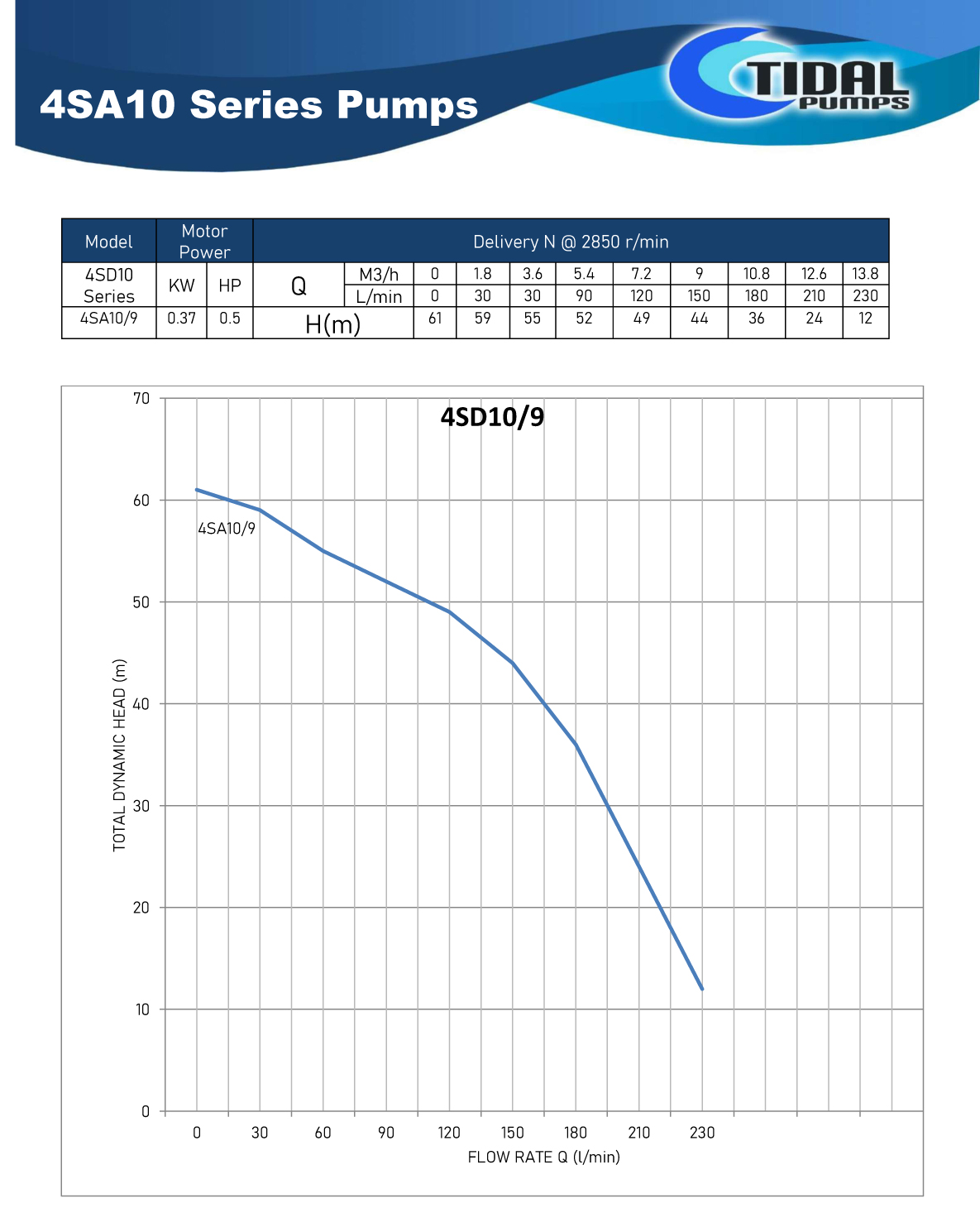

Water Delivery Pump Curve
