Description

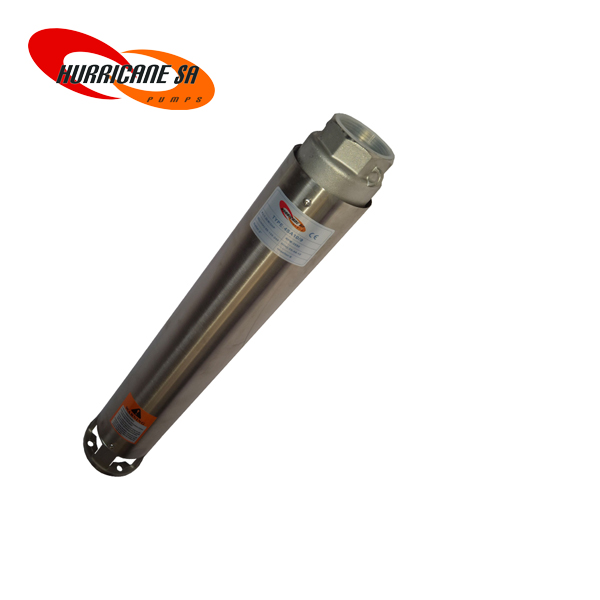

The Hurricane SA 4SA10/9 borehole submersible pump end requires a 1.5Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 52m.
Operating Conditions
- Maximum fluid temperature : up to 35°C
- Maximum sand content : 0.25%
- Minimum borehole diameter : 4″ (10.16cm)
Motor & Pump
Single Phase : 220V – 240V 1.5KW 2HP / 50Hz or
Three Phase : 380V – 415V 21.5KW 2HP / 50Hz
Equip with either a standard (manual) or an automatic control box 1.5KW 2HP (water level sensors)
Warranty : 12 Month
According to our general sales conditions
Specifications
- Speed : 2850RPM
- Power : 1.5KW
- Power : 2HP
- Outlet : 32mm
- Pump Diameter : 100mm
- Pump Length : 660mm
- Pump Wieght : 2.3KG
| Output | 90L/min | 180L/min | 230L/min |
| Depth | 52m | 36m | 12m |
Water Delivery Pump Curve
