Tidal Pumps 4" Borehole Pump End 1.3KW (4SA4/16)

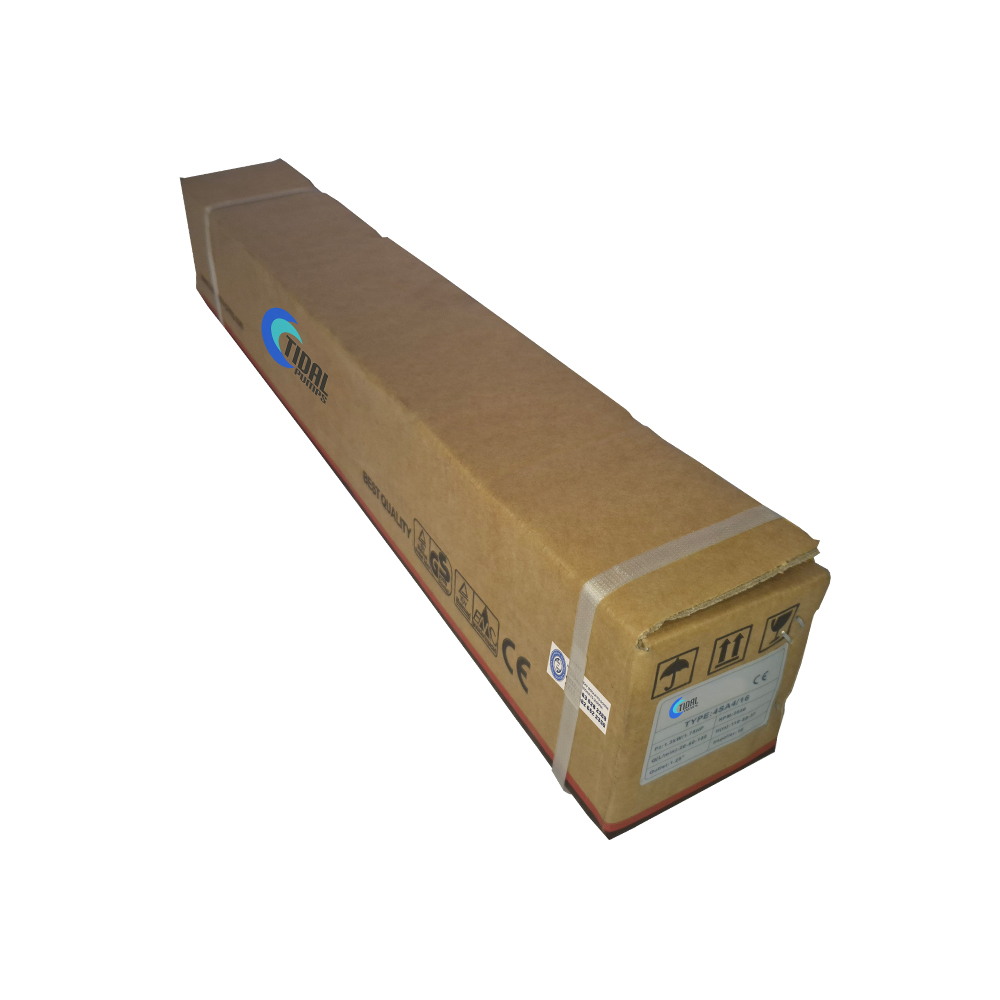

Tidal Pumps 4" Borehole Pump End 1.3KW Box (4SA4/16)
Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves

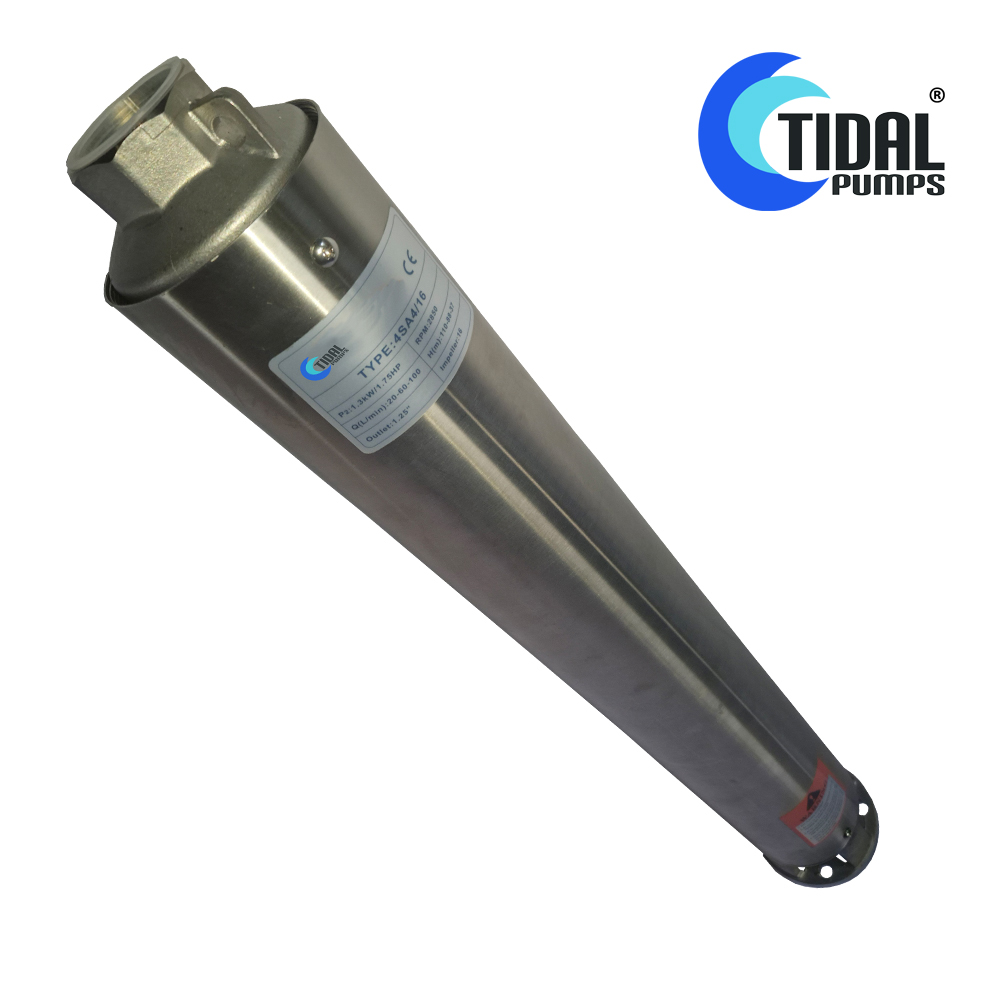

4″ Borehole Pump End 1.3KW (TIDAL-4SA4/16)

R1244,00 Excl. V.A.T.

The Tidal Pumps 4SA4/16 borehole submersible pump end requires a 1.3Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 110m. It can be connected to either a 220V single phase 1.3KW borehole submersible motor or a 380V three phase 1.3KW borehole submersible motor.

Description

The Tidal Pumps 4SA4/16 borehole submersible pump end requires a 1.3Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 110m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Single Phase : 220V – 240V 1.3KW 1.75HP / 50Hz or
Three Phase : 380V – 415V 1.3KW 1.75HP / 50Hz
Equip with either a standard (manual) or an automatic control box 1.3KW 1.75HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 1.3KW
  • Power : 1.75HP
  • Outlet : 32mm
  • Pump Diameter : 100mm
  • Pump Length : 720mm
  • Pump Wieght : 5.9KG
Output 20L/min 60L/min 100L/min
Depth 110m 88m 37m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves

Additional information

Weight 5,9 kg
Dimensions 72 × 10 × 12 cm
