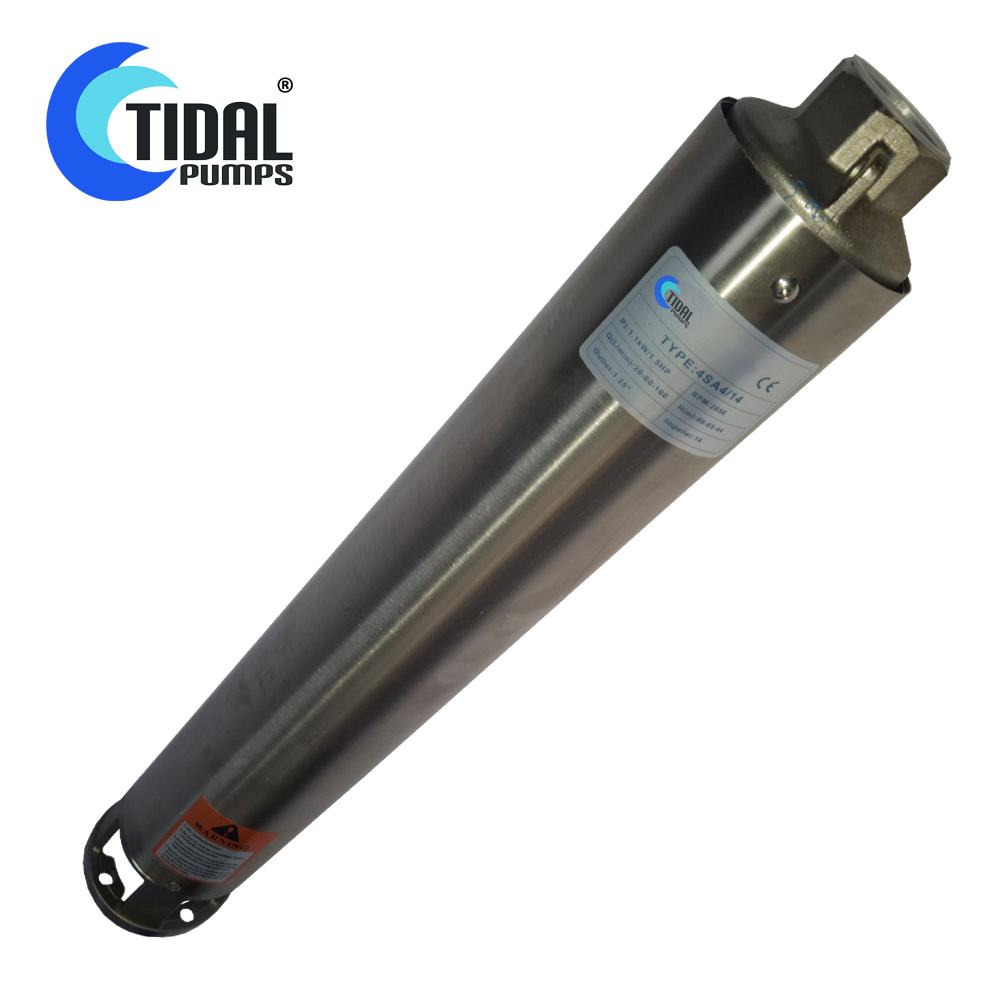

Tidal Pumps 4" Borehole Pump End 1.1KW (4SA4/14)

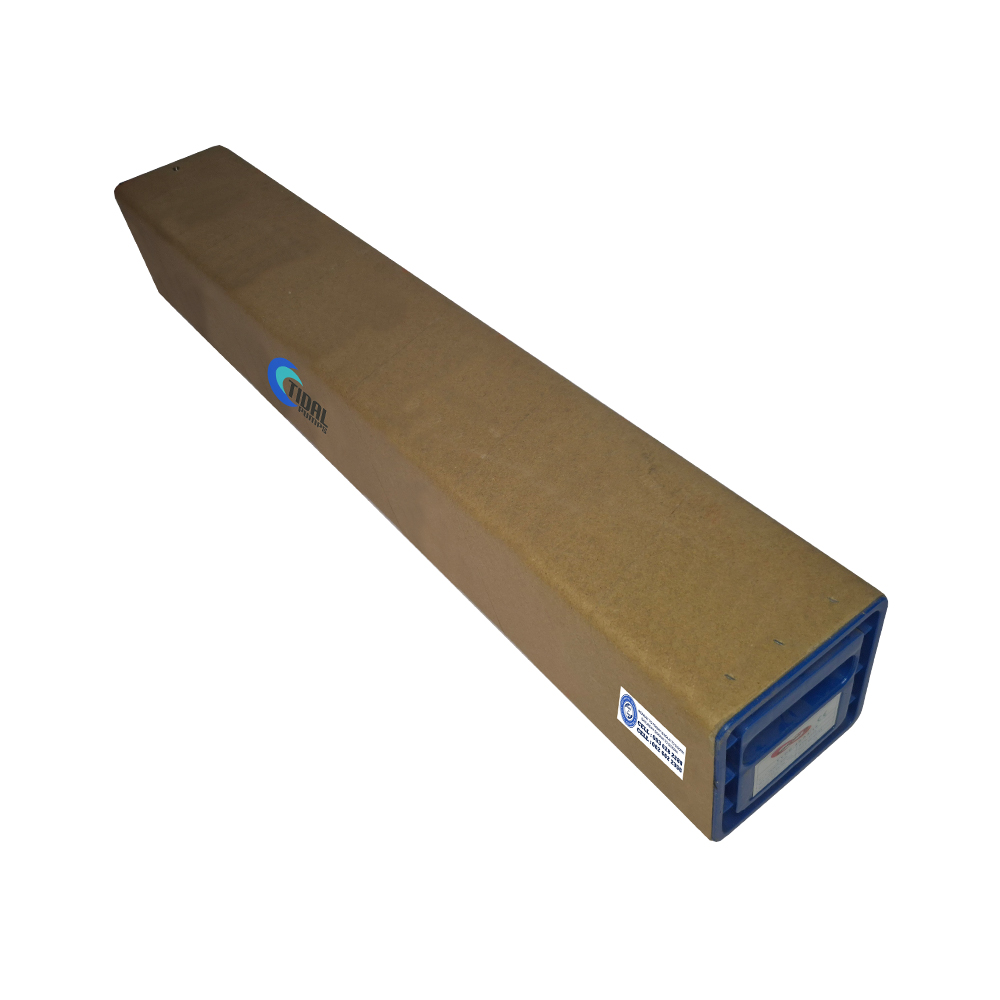

Tidal Pumps 4" Borehole Pump End 1.1KW Box (4SA4/14)
Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves

4″ Borehole Pump End 1.1KW (TIDAL-4SA4/14)

R1090,00 Excl. V.A.T.

The Tidal Pumps 4SA4/14 borehole submersible pump end requires a 1.1Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 96m. It can be connected to either a 220V single phase 1.1KW borehole submersible motor or a 380V three phase 1.1KW borehole submersible motor.

Description

The Tidal Pumps 4SA4/14 borehole submersible pump end requires a 1.1Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 96m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Single Phase : 220V – 240V 1.1KW 1.5HP / 50Hz or
Three Phase : 380V – 415V 1.1KW 1.5HP / 50Hz
Equip with either a standard (manual) or an automatic control box 1.1KW 1.5HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 1.1KW
  • Power : 1.5HP
  • Outlet : 32mm
  • Pump Diameter : 100mm
  • Pump Length : 630mm
  • Pump Wieght : 5.2KG
Output 20L/min 60L/min 100L/min
Depth 96m 77m 32m

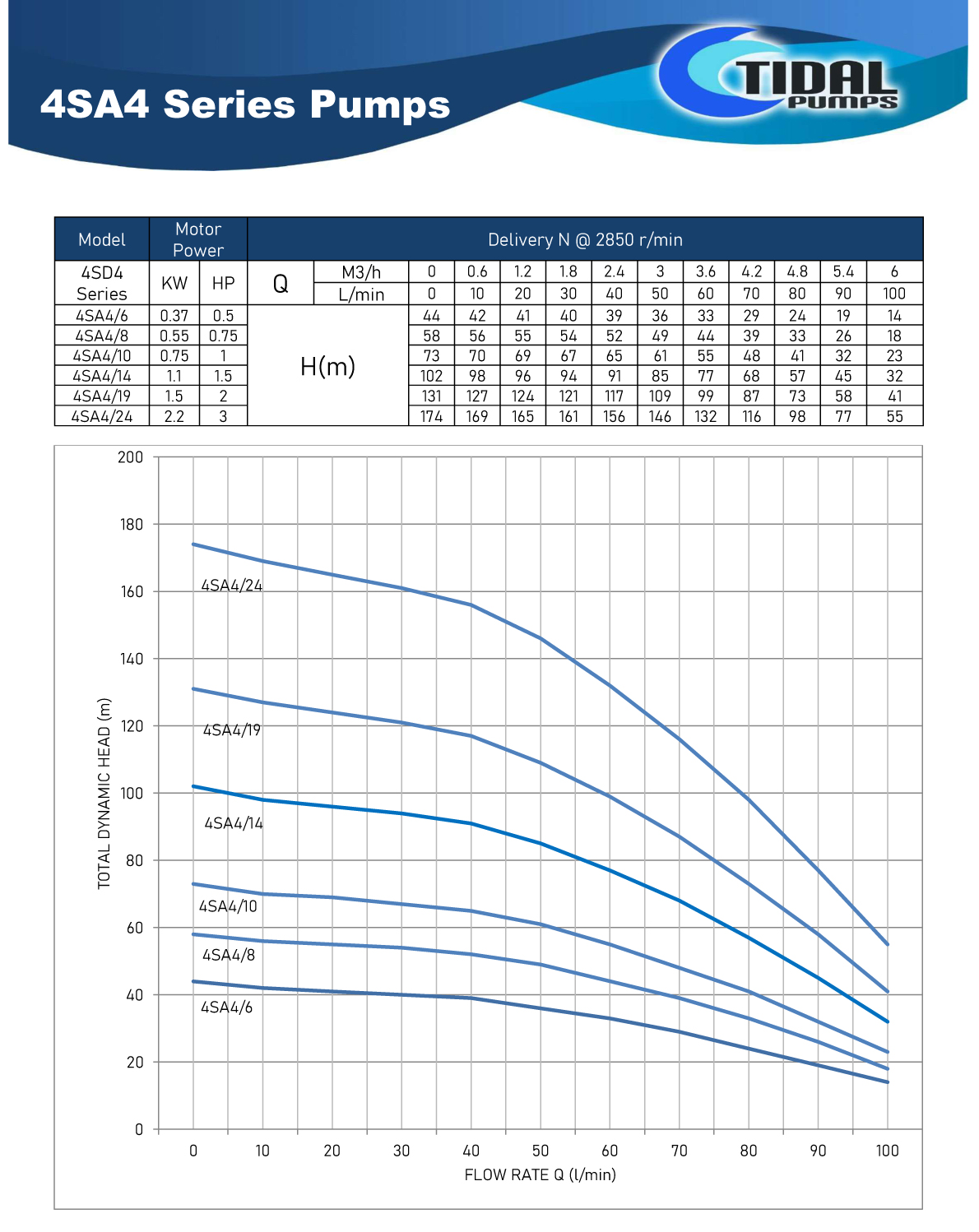

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA4 Series Borehole Pump Curves

Additional information

Weight 5,6 kg
Dimensions 68 × 11 × 11 cm
