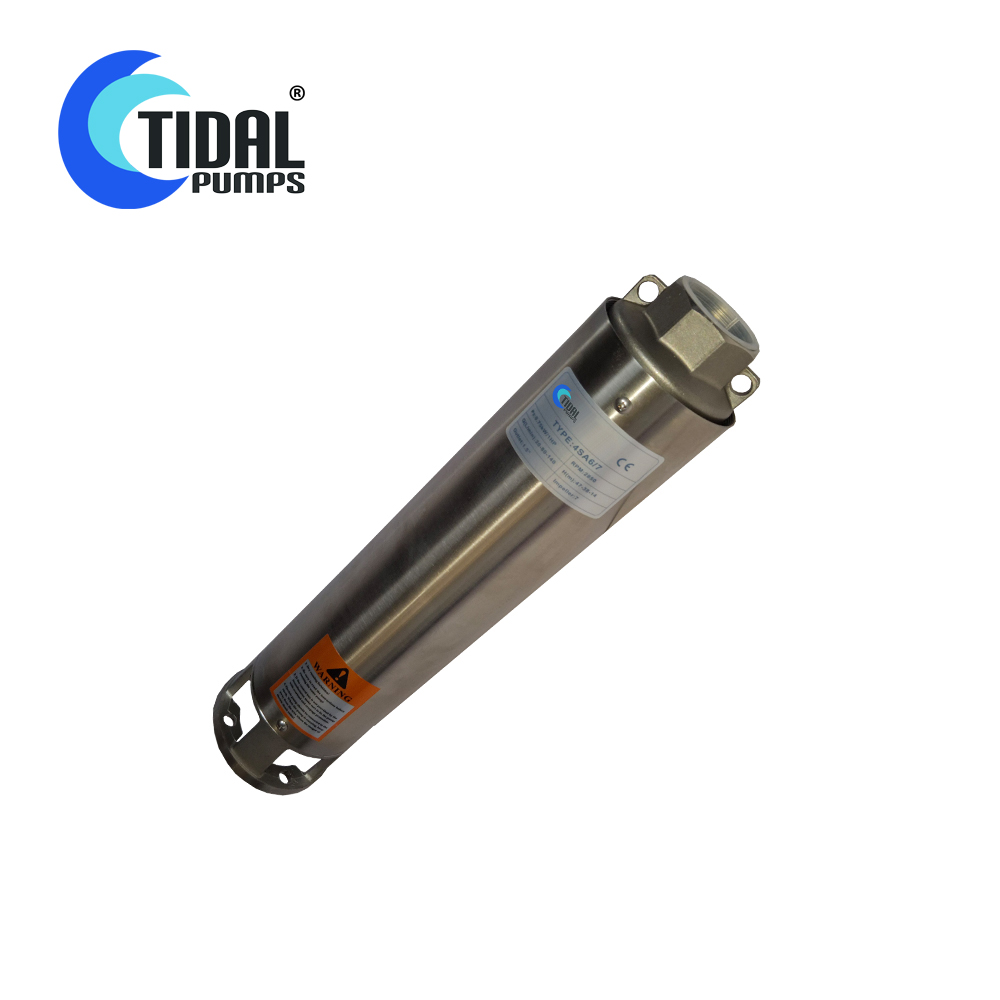

4″ Borehole Pump End 0.75KW (TIDAL-4SA6/7)

Description

The Tidal Pumps 4SA6/7 borehole submersible pump end requires a 0.75KW submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 47m.

Operating Conditions

• Maximum fluid temperature : up to 35°C
• Maximum sand content : 0.25%
• Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Single Phase : 220V – 240V 0.75KW 1HP  / 50Hz
Three Phase : 380V – 415V 0.75KW 1HP  / 50Hz
Equip with either a standard (manual) or an automatic 380V three phase or 220V single phase control box 0.75KW 1HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

• Speed : 2850RPM
• Power : 0.75KW
• Power : 1HP
• Outlet : 40mm
• Pump Diameter : 100mm
• Pump Length : 530mm
• Pump Weight : 4.1KG

Water Delivery Pump Curve
