Description

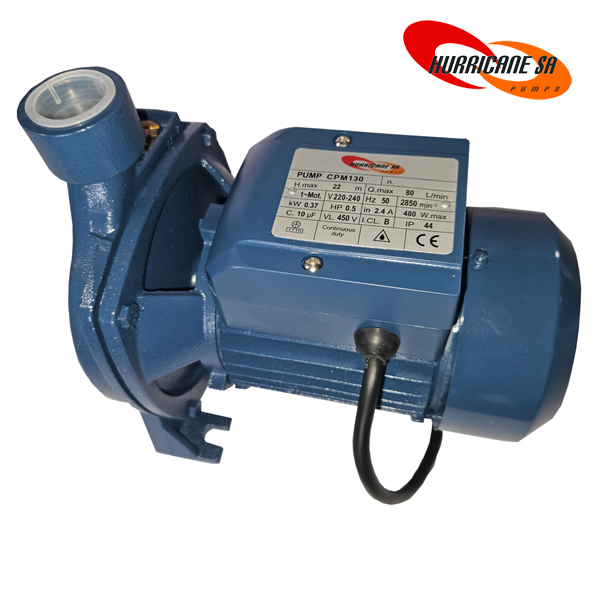

The CPM130-1 Centrifugal Pump is a 220V 0.37KW pump used to boost pressure in waterline.
It has an inlet size of 1″ and an outlet size of 1″.
Operating Conditions
- Maximum fluid temperature : 40°C
- Maximum flow 70L/min
- Max head height : 21m
Warranty : 12 Month
According to our general sales conditions
Specifications
- Voltage : 220V – 240V 50Hz
- Power : 0.37KW
- Power : 0.5HP
- Outlet Size : 25mm ( 1″)
- Inlet Size : 25mm (1″)
Pump
- Head up to 21m
- Max flow : 70l/min
Water Delivery Pump Curve
| MODEL | KW | HP | DELIVERY | |||||||
| L/HOUR | 6 | 1200 | 1800 | 2400 | 3000 | 3600 | 4200 | |||
| L/MIN | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |||
| HEAD (m) | 21 | 20 | 19 | 18 | 17 | 16 | 14 | |||
| CPM-130 | 0.37 | 0.5 | ||||||||
