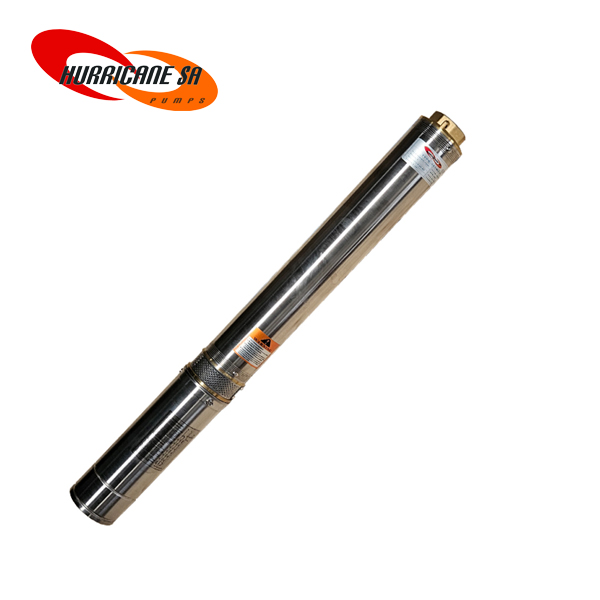

Hurricane SA 3Inch Borehole Kit 220V 0.25KW
0.37KW 3 INCH Borehole Pump Kit Pump and Motor only Box 3SD2/15
Hurricane SA 3Inch Borehole Kit Curves

0.25KW, 3 INCH Borehole Kit Pump and Motor Only 220V (3SD2/11)

R2000,00 Excl. V.A.T.

The Hurricane SA 3SD2/11 borehole pump comes complete with a 0.25Kw 220V submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 45m.

Description

The Hurricane SA 3SD2/11 borehole pump comes complete with a 0.25Kw 220V submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 45m.

Operating Conditions

  • Maximum fluid temperature: up to 35°C
  • Maximum sand content: 0.25%
  • Minimum borehole diameter: 3” (75cm)

Pump & Motor

Single-Phase : 220V – 240V 0.25KW 0.33HP / 50Hz

Warranty: 12 Month

According to our general sales conditions

Specifications

  • Speed: 2850RPM
  • Power : 0.25KW
  • Power : 0.33HP
  • Outlet : 32mm
  • Pump Diameter: 75mm
  • Pump Length: 770mm
  • Pump Weight : 7.1KG
Output 10L/min 30L/min 45L/min
Depth 45m 36m 20m

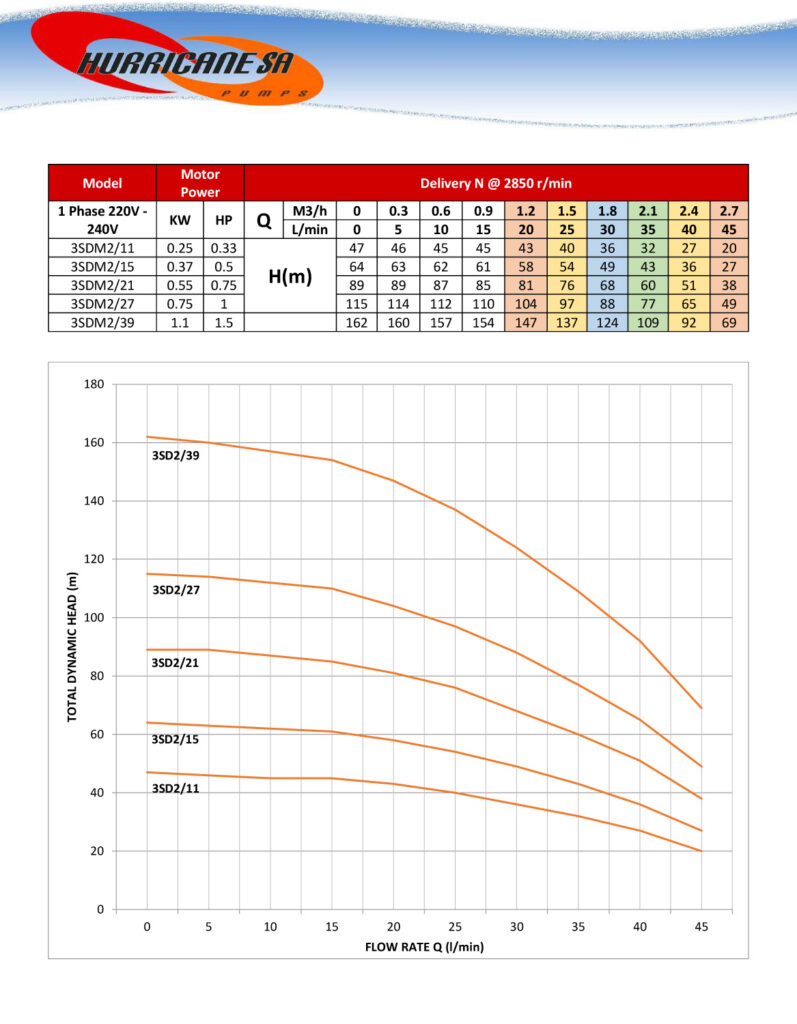

Water Delivery Pump Curve

Hurricane SA 3Inch Borehole Kit Curves
Hurricane SA 3Inch Borehole Kit Curves

Additional information

Weight 10,3 kg
Dimensions 96 × 12 × 12 cm
