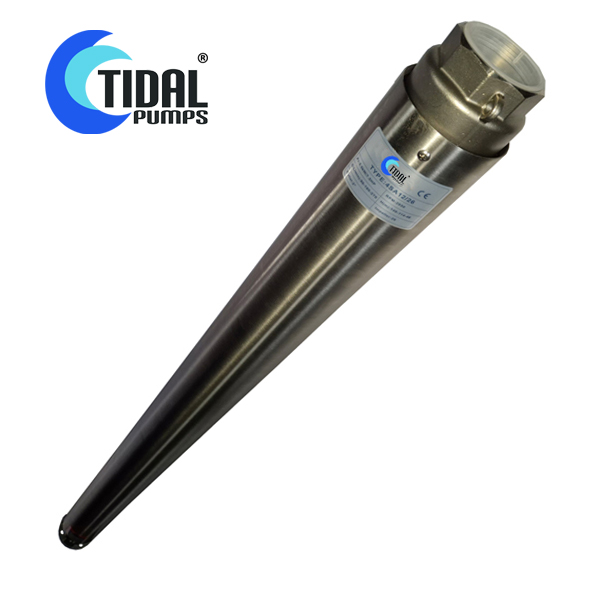

Tidal Pumps 4" Borehole Pump End 5.5KW (4SA12/26)

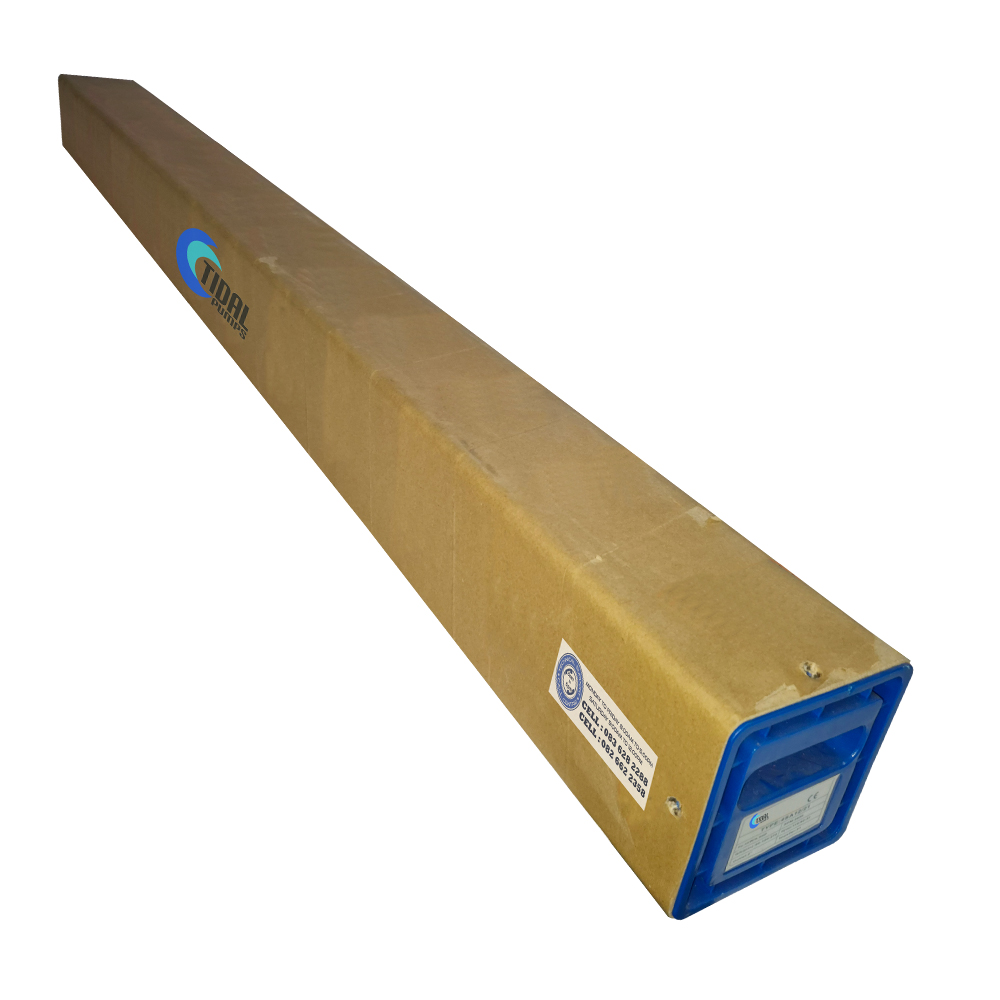

Tidal Pumps 4" Borehole Pump End 5.5KW Box (4SA12/26)
Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves

4″ Pump End Only 5.5KW (TIDAL-4SA12/26)

Original price was: R3050,00.Current price is: R2400,00. Excl. V.A.T.

The Tidal Pumps 4SA12/26 borehole submersible pump end requires a 5.5KW motor to drive it and is capable of delivering up to 90L/min at a depth of 119m. It can be connected to a 380V three phase 5.5KW borehole submersible motor.

Description

The Tidal Pumps 4SA12/26 borehole submersible pump end requires a 5.5KW motor to drive it and is capable of delivering up to 90L/min at a depth of 119m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 5.5KW 7.5HP / 50Hz
Equip with an automatic control box 5.5KW 7.5HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 5.5KW
  • Power : 7.5HP
  • Outlet : 50mm
  • Pump Diameter : 100mm
  • Pump Length : 1650mm
  • Pump Wieght : 13.7KG



Output 90L/min 180L/min 270L/min
Depth 119m 90m 39m

Water Delivery Pump Curve

Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves
Tidal Pumps 4Inch 4SA12 Series Borehole Pump Curves

Additional information

Weight 13,7 kg
Dimensions 165 × 11 × 11 cm
